TWL-IS Series ActiveLED® Off-Grid Solar Lights - Illuminates Hiking Trails, Paths and Walkways


  • TWL-IS Series ActiveLED® Trail / Walkway Light - Significantly longer run times and cycle life compared to other Off-Grid solutions

  • Ideal applications include:
    • Hiking Trails
    • Walkways
    • Other outdoor applications
    • May also be suitable for
    minor roadways

  • Improved light quality, illumination and uniformity provide a safer, more secure environment

  • Lumen Lifetime of 90,000 hours (90% Luminous Flux)

  • In-Situ programming using optional EDSaP IR link in conjunction with Windows application software

  • Optional Motion Sensing and Dimming energy management features:
    • provides additional
    energy savings and
    extended battery life

  • Easily mounts on an outdoor pole using the built-in round pole adapter with an Outer Diameter (O/D) of 2" to 3" or Round Arm adapter for Tenon with O/D 1.5" to 2 3/8", round arm bracket not included

  • Choice of Silver, Charcoal Grey, White, Bronze, Black or Brown finish. Custom colors available on request



TWL-IS Series ActiveLED® All-In-One Off-Grid Solar Lights illuminate Hiking Trails and Walkways

A solar light with built in charger and solar panel that is cost effective to install - Light output of 2800lm from 18 Watt total fixture wattage produces light similar to a 300 Watt incandescent light bulb or 150 Watt HID

The ActiveLED® TWL-IS series are energy efficient, high performance LED fixtures for illuminating outdoor Hiking Trails, Walkways and other pedestrian areas. May also be suitable for minor roadways.

The ActiveLED® Off-Grid Solar Trail / Walkway Light is fully integrated with solar charger, LED driver and Solar Panel uses energy more efficiently than competing lighting and has a motion sensor option that provides additional energy savings and increases the lifetime of the product.

With its patented design and superior LED elements, the ActiveLED Off-Grid Solar Trail and Walkway Light is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing drivers and batteries (or the whole fixture) can be hazardous and expensive.

The ActiveLED TWL-IS series lights have a light pattern that efficiently illuminates the hiking trail / walkway and minor roadway to the left and right of the fixture while eliminating light pollution, full cut-off and dark-sky compliant.

Significant energy savings are achievable from the device's daylight sensor and optional motion sensor.

TWL-IS Series Product Overview

ActiveLED provides three versions of Professional Off-Grid Solar Trail and Walkway Light Fixtures:

Product Code

Fixture Color

Application

Light Output

Mounting Type

TWL-IS-5024BZ-SP

Bronze

Trails, Walkways, Minor Roadways

2,800 Lumens

Square Pole

TWL-IS-5024SL-PT

Silver

Trails, Walkways, Minor Roadways

2,800 Lumens

Pole Top
diameter
60mm..75mm

TWL-IS-5024BR-TN

Brown

Trails, Walkways, Minor Roadways

2,800 Lumens

Tenon (round arm)
diameter
1.5"..2.38"

TWL-IS-5024BL-PT

Black

Trails, Walkways, Minor Roadways

2,800 Lumens

Pole Top
diameter
60mm..75mm

ActiveLED® Similar Products

ActiveLED offers a wide variety of Solar Lighting Products constructed with the most advanced lighting technology available today.

ActiveLED® Technology

ActiveLED uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than the latest iteration of fluorescent fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor and indoor lighting systems; our warranties are 10 years on LED elements and fixtures, 10 years on off-grid solar power supplies.

ActiveLED is an ISO 9001:2015 company, registered under BSI certificate FM-01880. ActiveLED provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTE:Except for round pole top mount, Square Pole and Round Arm Bracket are not included in the price.

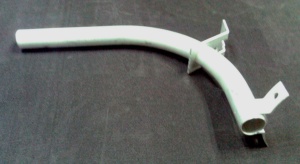

The Round Arm Bracket is part number 00-27-0002-0005 and can be ordered separately, pictured below.

Round Bracket Arm

00-27-0002-0005, Round Arm Bracket.


Technical Information

Input Voltage:Solar Panel 25W
Power Statistics:5 hours full on, rest of night reduced power
Power Efficiency:greater 90%
Listings & Tests:CE, suitable for wet locations.
RoHS compliant. IP66 rated.
LM-79 and LM-80 info available.
Dark Sky Compliant.
Conforms to FCC Part 15.19 Subpart B Class A
Operating Temperature:-58° F to +149° F (-50° F to +65° C)
Dimensions:6" W x 4" H x 17" L(15.2 x 10.2 x 43.2 cm)
Weight:12.0 lbs (5.4 Kg)
CCT Color Temperature:2700K..5000K, in accordance with ANSI C78.377A

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
