Nautica F172 - Ornamental Pendant Light Fixture with LED light engine and driver.


  • ActiveLED® Nautica Series Ornamental Pendant Light Fixture, 36 Watt producing 5500 lumens to replaces up to 125 Watt Metal Halide Fixtures

  • Significant Energy Savings (50-85%) and very low maintenance costs compared to conventional high wattage and inefficient lamps

  • 21st century classic ornamental pendant fixture ideal for:
    • Walkways
    • Parking lots area lighting
    • Pedestrian areas
    • Village Squares

  • CCT color choice of 2700K, 3000K, 3500K, 4000K and 5000K in Accordance with ANSI C78.377A

  • The ActiveLED F172 Ornamental Pendant luminaire's innovative design delivers the maximum possible light to the surrounding public space while eliminating light trespass to adjacent properties

  • Improved light quality and illumination uniformity:
    • Lumen Lifetime of 90,000
    hours, 90% Luminous Flux

  • Optional energy management features provide additional energy savings, including:
    • Daylight Sensor / Photocell

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of



ActiveLED® Nautica F172 - Ornamental Pendant Light Fixture with LED light engine and driver.

Provides a 21st century solution for Ornamental Pendant exterior light fixtures - an energy-efficient, high-performance and long-life luminaire.

The U.S.-manufactured ActiveLED Nautica Ornamental Pendant series luminaire is an innovative, self-contained fixture designed to replace existing inefficient, pendant fixtures that use legacy high-wattage light bulb assemblies, providing energy savings of 50-80 percent.

Municipalities, universities and colleges have traditionally preferred the classic look of Vintage style lamplights for roadways, sidewalks and public spaces in historical and residential neighborhoods. The ActiveLED Nautica Ornamental Pendant series continues this tradition but with 21st century low-maintenance technology and a 10 year all inclusive warranty.
And since the ActiveLED Nautica Ornamental Pendant series provides a superior quality of light compared to any alternative technology, the safety value of its surroundings are also improved.

The innovative design of the ActiveLED Nautica Ornamental Pendant luminaire is fully dark sky compliant and delivers the maximum possible light to the surrounding public space while eliminating light trespass to adjacent properties.
Ringdale’s patented LED technology also ensures a long life span of 90,000 hours (24/7 is 8,760 hours per year), lowering the bottom line when it comes to maintenance and operational costs.

ActiveLED® Nautica Ornamental Pendant Product Overview

Ringdale provides five models of ActiveLED Nautica Ornamental Pendant Luminaires for different lighting applications:

Product Code

Application

CCT Color

Wattage

Light Output

Suggested Mt Hght

TWL-N-50K-DD-BK

Walk Path

5000K

36 Watt

~ 5,500 lumens

3-4.5 m / 10-15 ft

TWL-N-40K-DD-

Walk Path

4000K

36 Watt

~ 5,440 Lumens

3-4 m / 10-13 ft

TWL-N-35K-DD-BK

Parking Lot

3500K

36 Watt

~ 5,100 Lumens

3-4 m / 10-13 ft

TWL-N-30K-DD-BK

Pedestrian Area

3000K

36 Watt

~ 4,900 Lumens

2-4 m / 7-13 ft

TWL-N-27K-DD-BK

Pedestrian Area

2700K

36 Watt

~ 4,500 Lumens

2-4 m / 7-13 ft

ActiveLED® Similar Products

ActiveLED Street Lighting products provide superior surface illumination for increased safety and security as brighter, whiter light makes it easier to see detail and color. ActiveLED fixtures direct all light evenly to the target surface minimizing light pollution outside the targeted area while improving overall visibility.

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than current HID technology (Metal Halide and High Pressure Sodium). Our state-of-the-art electronics monitor current and temperature of the LED substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems with our hassle-free 10 year warranty on LED elements, fixtures and drivers / power supplies.

Ringdale is an ISO 9001:2015 company, registered under BSI certificate FM-01880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA.

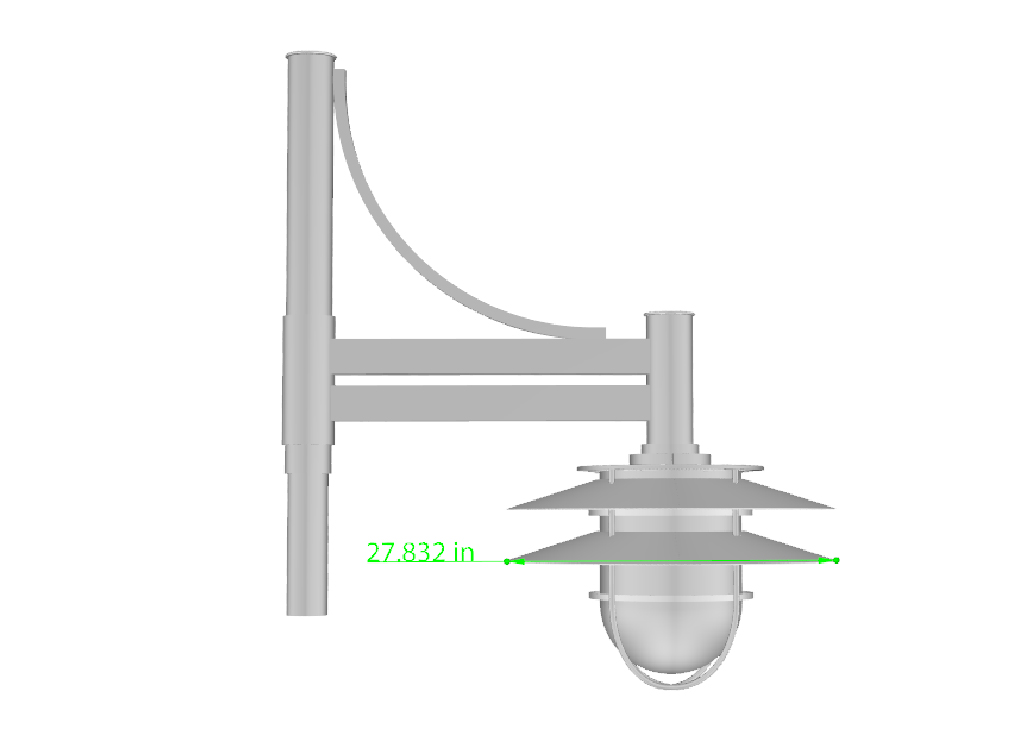

Schematic of the ActiveLED® Nautica Ornamental Pendant Luminaire:
The following schematic of the ActiveLED Nautica Ornamental Pendant Luminaire highlights its main dimensions:

VS5U-3-B50R24BK

NOTE: The Pole is not included in the ActiveLED Nautica luminaire price.

ActiveLED® Ornamental Pendant Series sample Part Numbers:

TWL-N-3-V-50K-DD-BK-HSS:
(Nautica, 3" Tenon, Type V Pattern, CCT5000K, 100-277 VAC Driver, 36 Watt, Black, House Side Shielded.)

TWL-N-2-V-40K-DD-BZ:
(Nautica, Type V Pattern, 100-277 VAC Driver, 2" Mount, CCT4000K, 36 Watt, Bronze.)

TWL-N-2-III-35K-DD-WH:
(Nautica, Type III Pattern, 100-277 VAC Driver, 2" Mount, CCT3500K, 36 Watt, , White.)

TWL-N-3-V-30K-DD-SL:
(Nautica, 3" Tenon, Type V Pattern, CCT3000K, 100-277 VAC Driver, 36 Watt, Silver.)

TWL-N-3-V-27K-DD-CV:
(Nautica, 3" Tenon, Type V Pattern, CCT2700K, 100-277 VAC Driver, 36 Watt, Copper Vein.)


Technical Information

Input Voltage:• 100-277V AC

Power Stastics:38 Watt max. Fixture

Power Factor & THD:PF: > 0.98 (at ~120 Volts)THD: < 20%, typical 9.9%

Mounting:Mounts onto a pipe:
• 2-3/8" O/D round tenon
• or 3" O/D round tenon

Listings & TestscUL Listed Driver, suitable for wet locations. B2-U0-G2 or B0-U0-G2 for HSS Version
TM21 based on CALIPER ISTM Test to UL1598
CALIPER LM-79 Report, LM-80 info available
CE File, RoHS compliant, IP64 Rated.
Conforms to FCC Part 15.19 Subpart B Class A

Operating Temp:-50..+65° C (-58..+149° F)

Dimensions:

Weight:
28.6" fixture height (without mounting)
27.9" diameter

28 lbs (12.7 Kg)

CCT Color Temperatures:2700K, 3000K, 3500K, 4000K or 5000K in Accordance with ANSI C78.377A
