LightSpace® Remote Digital Motion/Occupancy Sensor (Oblong Format) for ActiveLED® Lighting Systems


  • LightSpace® Remote Digital Motion / Occupancy Sensor (Oblong Format) for ActiveLED® Lighting - Low DC Voltage, very low power consumption with an effective range of 35 feet

  • Controls one or many ActiveLED lighting fixtures.

    Satisfies the occupany zone requirements of 2006 IECC

  • Each interconnected ActiveLED fixture / power supply relays the sensor signal to the next fixture in the chain, so that the number of LED lights that can be controlled from one Ringdale motion / occupancy sensor is virtually limitless

  • Implement a manageable occupancy zone when combined with an ActiveLED Digital Dimmer or LightSpace Manager (up to 10 sensors per dimmer) to save even more energy.

    EXAMPLE:
    A 104 Watt ActiveLRD fixture that is dimmed down to light level 40 when there is no motion sensed consumes just 9.36 Watt (9% of 104 Watt), saving 94.64 Watt, 91%

  • Each Motion / Occupancy Sensor is powered by the single ActiveLED lighting fixture to which it is directly connected

  • 6-wire flat ribbon cable connection to an ActiveLED power supply using RJ-12 male connectors

  • Standard 4-wire flat ribbon cabling (RJ-11 / RJ-12 connectors) to interconnect each ActiveLED lighting fixture to provide a network / occupancy zone of controllable lights

  • Oblong Format mounts to a standard electrical junction box, please refer to the relevant part numbers for USA or UK style variants



LightSpace® Remote Digital Motion / Occupancy Sensor (Oblong Format) for ActiveLED® Lighting Systems

Allows ActiveLED® C-Type Lighting equipment in a defined Occupancy Zone to be turned off or on based upon sensed motion or occupancy, saving even more energy and therefore cost. Low DC Voltage with an effective range of 35 feet

ActiveLED® Lighting consumes at least 50-85 percent less energy than conventional lighting.

With its patented design and superior LED elements, ActiveLED Lighting is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing bulbs and ballasts can be hazardous and expensive.

Significant savings from not having to maintain and renew incandescent bulbs or fluorescent tubes in light fixtures, reduced heat generation and energy use justify the initial outlay.

Additional and substantial energy savings can be achieved by implementing an environmentally safe ActiveLED lighting / occupancy zone

LightSpace® Remote Motion Sensor Application

The Remote Digital Motion / Occupancy Sensor is designed to be connected to a C-Series ActiveLED power supply. One Sensor can control one or many LED lighting fixtures, providing the ability to adjust light levels to suit occupancy needs while saving even more energy.

The digital sensor is connected to the sensor input of one ActiveLED lighting fixture using a standard 6-wire cable terminated with 6-pin RJ-12 connectors.

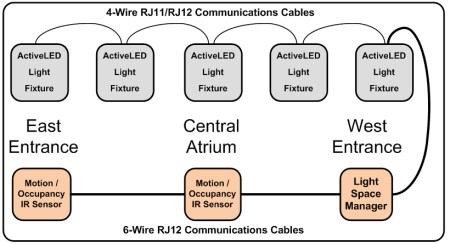

A group of controlled ActiveLED light fixtures (ActiveLED C-Series power supplies) can be interconnected to form an occupancy zone using a 4-wire communication link that is terminated in RJ-11 / RJ-12 connectors.

The Oblong Format ActiveLED Motion / Occupancy Sensor has an effective range of ~35 feet and a sensing cone that is 65+° from the perpendicular (135° total cone).

ActiveLED® Occupancy Zone / Lighting "Network"

Up to 999 ActiveLED lighting fixtures that can be controlled from a single ActiveLED motion / occupancy sensor. Each interconnected LED fixture / power supply relays the sensor setting to the next connected fixture, thereby giving unlimited flexibility in managing a defined ActiveLED Lighting Occupancy Zone.

Adding a digital dimmer or LightSpace Manager to the configuration offers additional management capabilites, further reducing power consumption and therefore energy costs of the lighting fixtures within the Occupancy Zone.

Depending upon the size and shape of the defined space and the number of entry and exit points, one digital dimmer and/or LightSpace Manager can be combined with up to 10 (ten) motion/occupancy sensors in designing the occupancy zone to provide the maximum energy savings.

Motion Sensor 00-27-0612-0000 Drawing

ActiveLED® Brightness Settings and Fixture Power Consumption

Settings

% Power

ActiveLED® Brightness Settings relative to Fixture Power Consumption

100

100

The ActiveLED system architecture is unique in its efficiency, design and the way the ActiveLED Elements are driven. This chart accurately details the substantial energy savings that can be achieved when deploying a manageable ActiveLED lighting network.

Combining this architecture with a LightSpace™ Appliance, including the LightSpace Manager-IR, provides additional energy savings that are somewhat exponential to the reduced light level.

Example One:
An ActiveLED High Bay Strip with 104 watts total fixture (96 watts of LEDs) with the brightness dimmed down to brightness level 50, then the total power consumption of that fixture is 16.64 watts (16% of 104 watts) at this brightness level of 50.

Example Two:
An ActiveLED High Bay Strip with 104 watts total fixture (96 watts of LEDs) with the brightness dimmed down to brightness level 30, then the total power consumption of that fixture is a mere 5.2 watts (5% of 104 watts) at this brightness level of 30.

This same chart and percentages not only apply to any of our lighting fixtures with the external dimming controls, including the Rotary Digital Dimmer and the LightSpace Manager, but also to any pre-programmed ActiveLED fixture.

Although the light output of ActiveLED fixtures can be dimmed in 2% increments, the chart on the left accurately portrays the percentage power consumption for each incremental brightness setting of 10.

90

80

70

80

60

42

60

50

40

28

16

9

30

20

10

0

5

2.5

1.5

0 (off)

ActiveLED® Communication Cables for the Remote Digital Sensor

The ActiveLED® Motion Sensor connects to an ActiveLED power supply as per the EDSaP wiring specification, using either standard RJ12 6-wire "flat ribbon" or UTP cable using RJ-12 male connectors (Flat-Ribbon recommended).

Interconnect each ActiveLED lighting fixture to provide a lighting network / occupancy zone as per the EDSaP wiring specification, using either Standard RJ-11 / RJ12 (4-wire) "flat ribbon" or UTP cabling (Flat-Ribbon recommended).

NOTE: Cables not included in the price of the Motion Sensor.

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust LED lighting systems; our warranties are 10 years on LED elements, fixtures, drivers / power supplies and Motion / Occupancy Sensors.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas and in the United Kingdom.

ActiveLED® Remote Motion / Occupancy Sensor Part Numbers:
00-27-0609-0000, US format
00-27-0609-0001, UK format


Technical Information

Sensor Connection to LED Light: 6-pin flat ribbon or UTP cable with RJ-12 Connectors
Inter-Connect, LED to LED Fixture:4-pin flat ribbon or UTP cable with RJ-11 / RJ-12 Connector
Prerequisite:ActiveLED lighting fixtures with the Digital Management option (communications ports)
Sensor Connection to other ActiveLED Appliances:6-pin flat ribbon or UTP cable with RJ-12 Connectors
Sensing Range:

Sensing Cone:
Up to 35 feet

65° from the perpendicular (135° total cone)
Power:

Default Factory Settings:
Powered by the attached ActiveLED fixture (12 volts DC)

After 10 minutes of no motion, dim light down to warning level 70.
After 10 seconds of no motion, dim from L70 down to and hold at level 40.
When motion is sensed, go to full brightness.
Regulatory Compliance:cUL listed, CE, suitable for damp locations. RoHS compliant.
Dimensions:

Weight:
3.5" x 1.3" x 1.0" (8.9 x 3.3 x 2.5 cm).

2 ounces (0.06 Kg)
