Mounting Bracket Assembly provides flexible mounting options for an ActiveLED^® Flood Light Stirrup Bracket (24" or 40") to a square or hexagonal, steel, concrete, wood or composite pole.

Sturdy design mounts a Ringdale ActiveLED Flood Light Stirrup Bracket (24" or 40") to a pole via four high-tensile stainless steel carriage bolts (included in kit), providing versatility of how and where to install a Flood Light.

The Universal-C Mounting Bracket Assembly is ideally suited for installations where it is not possible or inadvisable to drill holes or drive bolts into the Pole.
It is designed for easy installation with all parts pre-drilled and ready for assembly. The Backplate is sturdily made from 0.187" thick 304-2B Stainless Steel and includes slots to accommodate two optional mounting straps.

The Pole can be square, hexagonal, octagonal steel, concrete, wood or composite construction. Requires adapter kit 00-27-0009-0100 to attach to a Round Pole.

To provide the maximum possible configuration options, the Flood Light can be orientated vertically or horizontally on the Universal-3 Bracket for precise adjustment of the fixture to the task.

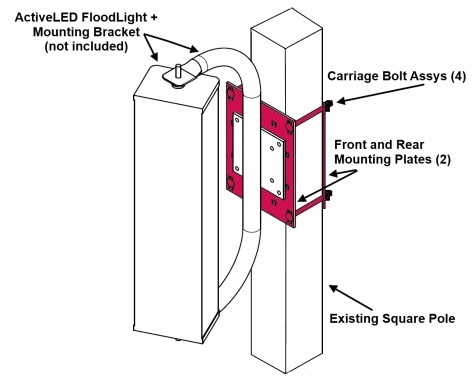

Detailed Schematic of the ActiveLED^® Universal-C Mounting Bracket Assembly

The following schematic outlines the Mounting Bracket Assembly clamped to an existing square pole with a Flood Light and a Stirrup Bracket attached. (assembly parts identified in red)

Universal-C Mounting Bracket Assembly Contents

● Backplate, pre-drilled (qty 2)
● Carriage Bolts, 3/8-16 x 8" SS (4)
● Assorted High-tensile bolts, nuts & washers

ActiveLED^® Flood Lights

Select the Flood Light that best meet the application from the comprehensive Ringdale ActiveLED range, including:
● 24" or 40" long
● Choice of LED wattage from 24 to 96 Watt
● Traditional, Narrow, Stadium or Flagpole Light Pattern
● Clear or Etched Diffuser
● Energy Management Options

Please refer to the separate ActiveLED Flood Light datasheet for more details.

ActiveLED^® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED^® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Mounting Bracket Assembly.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTES:
Pole, Straps, Flood Light and Stirrup Bracket not included in kit. Flood Light and Stirrup Bracket sold separately.

ActiveLED^® Universal-C Mounting Bracket Assembly Part Number:

00-27-0009-0003, Stainless Steel, unpainted
Requires adapter kit 00-27-0009-0100 to attach to a Round Pole

Technical Information

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
