Mounting Bracket Assembly provides flexible mounting options for an ActiveLED® Wall Pack Light to a square or hexagonal, steel, concrete, wood or composite pole.
Sturdy design mounts a Ringdale ActiveLED WallPack Light to a pole via four high-tensile stainless steel carriage bolts (supplied in kit), providing versatility of how and where to install a WallPack lighting fixture.
The Universal-D Mounting Bracket Assembly is ideally suited for installations where it is not possible or inadvisable to drill holes or drive bolts into the Square Pole.
It is designed for easy installation with all parts pre-drilled and ready for assembly. The Backplate is sturdily made from 0.187" thick 304-2B Stainless Steel and includes slots to accommodate two optional mounting straps.
The Pole can be square, hexagonal, octagonal steel, concrete, wood or composite construction. Optional adapter kit 00-27-0009-0100 required when mounting to a Round Pole.

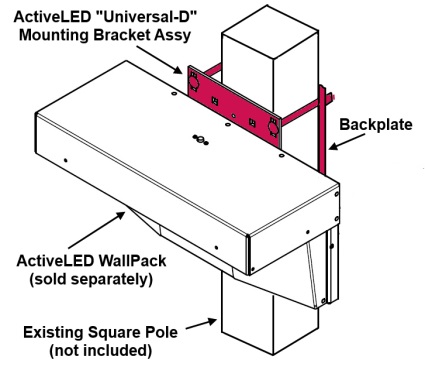

Detailed Schematic of the ActiveLED® Universal-D Mounting Bracket Assembly (assembly parts identified in red)
ActiveLED® Universal-D Mounting Bracket Assembly Contents
● Backplate, pre-drilled (2)
● Carriage Bolts, 3/8-16 x 8" SS (4)
● Assorted High-tensile bolts, nuts & washers
ActiveLED® WallPack Lights
Select the WallPack Light that best meets the application from the comprehensive ActiveLED range, including:
● Choice of fixture color
● Energy Management Options
Please refer to the separate ActiveLED WallPack Light datasheet for more details.
ActiveLED® Technology
Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).
ActiveLED® Warranties
We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Mounting Bracket Assembly.
Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.
NOTES:
Pole, optional Straps and WallPack Light not included in kit, WallPack sold separately.
ActiveLED® Universal-D Mounting Bracket Assembly Part Number:
00-27-0009-0004, unpainted Stainless Steel
Optional adapter kit 00-27-0009-0100 required when mounting to a Round Pole
| Construction Material: | All key components are unpainted High-Tensile Stainless Steel |
|---|---|
| Dimensions: | Backplate: 11" x 8" (27.9 x 20.3 cm) |
| Total Weight: | 4.6 lbs complete (2.1 Kg) |
| Kit Contents: | • Backplate (2) • Carriage Bolts, 3/8-16 x 8" SS (4) • High tensile bolts, nuts & washers NOT INCLUDED: Pole, WallPack Light |
| Slots for Optional Mounting Straps: | 4 Slots, each 1-1/4" x 3/8" (3.2 x 1.0 cm) (straps not included) |
| Pole Sizes: | Suitable for mounting on Square Poles from 4" to 6" (10.2 to 15.2 cm) |
| Bracket Finish: | Available in unpainted Stainless Steel for longevity Optional colors available on request |
| Part Number: | 00-27-0009-0004, Stainless Steel Optional adapter kit 00-27-0009-0100 required when mounting to a Round Pole |
Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
