Hanging Kit - for Suspending an ActiveLED® Tunnel, Task or Stairwell Light via chains, cables - easy to install with included hardware and a Phillips screwdriver (chains or cables not included)
Sturdy design provides versatility of where to suspend / hang the lighting fixture to a ceiling, overhang or similar structure, allowing the light fixture to be precisely orientated to the task.
The Hanging / Suspending Kit is designed for easy installation with all parts pre-drilled and ready for assembly.

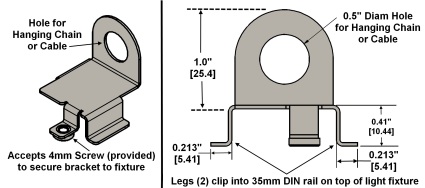

Detailed Schematic of the Hanging Kit Assembly
Contents of Hanging Kit Assembly
● Hanging Bracket, pre-drilled (2)
● Screws for securing bracket to light fixture
(Light Fixture sold separately)
ActiveLED® Tunnel / Task / Stairwell Lights
Select the Light Fixture that best meets the application from the comprehensive Ringdale ActiveLED range, including:
● Tunnel, Task or Stairwell Light
● Choice of fixture wattage - 6 to 33 watts
● Choice of fixture length - 12", 24", 36" or 48"
● Choice of fixture color
● Energy Management Options
Please refer to the separate Tunnel / Task / Stairwell Light datasheets for additional information.
ActiveLED® Technology
Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).
ActiveLED® Warranties
We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Hanging Kit Assembly.
Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.
Part Numbers, Hanging / Suspending Kits:
00-27-0012-0001, Silver
00-27-0012-0001a, Charcoal Grey
00-27-0012-0001b, Brown
NOTE: Light Fixture sold separately.
| Construction Material: | All key components are powder-coated Galvanised Steel |
|---|---|
| Overall Dimensions: | 1.55" (W) x 1.20" (L) x 1.33" (H) (3.9 x 3.0 x 3.4 cm) |
| Total Weight: | 0.1 lb complete (0.05 Kg) |
| Kit Contents: | • Hanging Bracket, pre-drilled (2) • Screws for securing bracket to light fixture (2) |
| Suitability: | For suspending any version of the ActiveLED Tunnel, Task or Stairwell light fixture from a ceiling, overhang or structure |
| Kit Color: | Available in Brown, White, Silver, Bronze or Charcoal Grey to match the color of the attached ActiveLED Fixture |
Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
