Quad Pole Mounting Bracket Assy for up to four 40


  • Quad Pole Mounting Bracket Assy - Mounts up to four ActiveLED® 40" Flood Lights to a round, square, hexagonal or octagonal Pole

  • Ideally suited for installation of ActiveLED® Flood Lights to meet task light levels or where the lights are to be mounted high up

  • Each Flood Light can be independently swivelled to align the Light with the task

    Prerequisites
    Ringdale 40" Flood Lights (00-27-1611 series)

  • Quad Pole Mounting Bracket can be attached to the pole such that the Flood Lights are installed in either a vertical or horizontal orientation

  • Top and Bottom Clamps are adjustable on the pole to provide precise adjustment of the installation angle of the Quad Frame, and therefore the Flood Lights

  • Fabricated from unpainted Stainless Steel for longevity and to complement most applications

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • ActiveLED - Available options for even greater energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Dimming capabilities



Quad Pole Mounting Bracket Assy for up to four 40" ActiveLED® Flood Lights

Quad Pole Mounting Bracket Assembly provides flexible mounting options for up to four ActiveLED® 40" Flood Lights to a round, square, hexagonal, octagonal, steel, concrete, wood or composite pole.

Sturdy design mounts four ActiveLED® 40" Flood Lights to a pole. Each Flood Light can be independently swiveled / adjusted to provide the optimum light pattern and light levels at the task.

The Quad Pole Mounting Bracket Assembly is ideally suited for installations where the application requires high lights levels at the task or where the Flood Lights are mounted high-up.
It is designed for easy installation with all parts pre-drilled and ready for assembly, supporting up to four ActiveLED 40" Flood Lights.

The Quad Pole Mounting Bracket can be attached to the pole such that the Flood Lights are supported in either a vertical or horizontal orientation.

The Pole can be round, square, hexagonal, octagonal steel, concrete, wood or composite construction.

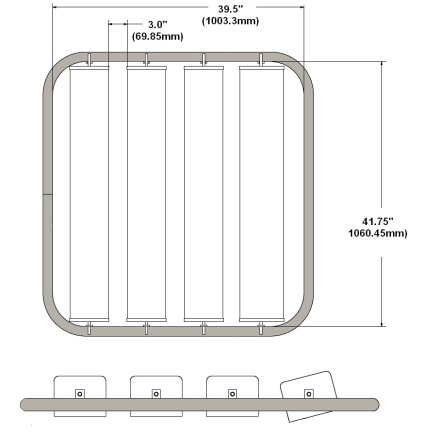

Detailed Schematic of the Quad Pole Mounting Bracket Assembly

The following schematic depicts the Quad Pole Mounting Bracket with four ActiveLED 40" flood lights installed and the whole assembly is configured with the flood lights in a vertical orientation.

00-27-0003-0001

ActiveLED® Quad Mounting Bracket Assembly Contents

● Main Quad Frame Assembly, can be orientated on the pole vertically or horizontally
● Clamp assembly for the bottom of the Frame
● Clamp assembly for the top of the Frame
● Top Supporting Arms
● Assorted high-tensile bolts, nuts & washers

ActiveLED® 40" Flood Lights

Select the flood lights that best meet the application from the comprehensive Ringdale ActiveLED range, including:
● 24 Watt, 48 Watt, 72 Watt or 96 Watt
● Traditional, Narrow, Wide, Flag-Pole, Stadium Light Pattern, etc
● Etched or Clear Second Diffuser
● Energy Management Options

Please refer to the separate ActiveLED Flood Light datasheets for more details.

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Quad Pole Mounting Bracket Assembly.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

Prerequisites

Ringdale ActiveLED 40" Flood Light(s).

ActiveLED® Quad Bracket Part Numbers:

00-27-0003-0001


Technical Information

Construction Material:All key components unpainted Stainless Steel
Overall Dimensions:• Quad Frame:
42.50" x 44.75" (108.0 x 113.7 cm)

• Mounting Arms:
33.6" (85.3 cm)
Total Weight:TBD
Kit Contents:• Quad Frame Assy (1)
• Pole Clamp Assy (2)
• Top Support Arms (2)
• High tensile bolts, nuts & washers
NOT INCLUDED: Pole, Flood Lights
Pole Sizes:Suitable for mounting on Poles with diameters from 4" to 10" (10.2 to 25.4 cm)
Prerequisites:ActiveLED 40" Flood or BillBoard Light(s)
Part Number:00-27-0003-0001
