SL1-PT Series of ActiveLED® Pole-Top Mount Street and Parking Lot Lights


  • SL1-PT Series of ActiveLED® Pole-Top Mount Street, Parking Lot and Pathway Lights - Significant Energy Savings compared to conventional high wattage lighting and very low maintenance costs

  • Ideal applications include:
    • Streets
    • Parking lots
    • Pedestrian areas
    • Other outdoor applications

  • Improved light quality and illumination uniformity.

    Lumen Lifetime of 90,000 hours (90% Luminous Flux)

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Daylight Sensor included
    (with manual override switch).
    Optional controls for additional energy savings:
    • Motion Sensor
    • Light Space Manager
    • Battery Backup for
    emergency lighting

    EXAMPLE:
    A 50 Watt ActiveLED Street Light that is dimmed down to light level 40, when there is no motion sensed, consumes just 4.5 Watt (9% of 50 Watt), saving 45.5 Watt, 91%

  • Built-in Junction Box provides easy access to connect the AC Line Feed from inside the pole to the fixture's power supply / driver

  • Choice of Traditional, Wide or Xtra-Wide Light Pattern

    Light output similar to 150 through 450 Watt HPS / HID legacy bulb fixtures

  • Choice of light fixture wattage, see table for details

    Choice of Silver, White, Charcoal Grey, Bronze or Brown finish. Custom colors available on request



SL1-PT Series ActiveLED® Pole-Top Mount Street, Parking Lot and Pathway Lights, choose from 26, 50 or 75 Watt fixtures

Cost effective to install - Light output similar to 150 through 450 Watt HPS / HID - Pole-Top mountable

The ActiveLED® SL1-PT series Pole-Top Mount Street, Parking Lot and Pathway Light consumes at least 50-85 percent less energy than conventional lighting and has a dusk-to-dawn sensor that provides additional energy savings.

With its patented design and superior LED elements, the ActiveLED SL1-PT series fixture is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing bulbs and ballasts can be hazardous, expensive and difficult.

ActiveLED® SL1-PT Series Product Overview

The ActiveLED SL-PT series Street Light Fixtures are available in a variety of light levels and light pattern configurations to satisfy differing applications:

Product Code

Application

Wattage

Light Output

Suggested Mount Height

SL1PT-5024

Pathway / Parking Lot

26 Watt

~87 Lumens / Watt

4.0m / 13 ft

SL1PT-5048

Street / Highway

50 Watt

~87 Lumens / Watt

6.0 m / 20 ft

SL1PTW-5024

Pathway / Parking Lot

26 Watt Wide

~87 Lumens / Watt

4.0 m / 13 ft

SL1PTW-5048

Street / Highway

50 Watt Wide

~87 Lumens / Watt

6.0 m / 20 ft

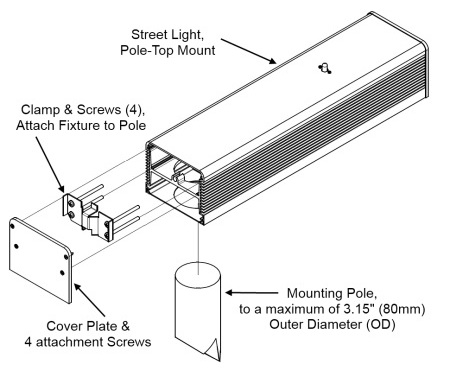

Installation Schematic of ActiveLED® SL1-PT Series Street Light

Installing the SL1-PT series of ActiveLED street light fixtures onto a pole-top is a simple five-step process:
(1) Remove the Cover Plate and slide the fixture onto the top of the pole
(2) Orientate the fixture to the task
(3) Connect the AC line feed.
(4) Tighten the four M6 x 45mm stanless steel bolts that clamp the fixture to the pole
(5) Reattach the Cover Plate with the four provided stanless stel screws

The following schematic outlines the key components of the installation process.

00-27-1606-SLPT Drawing

ActiveLED® Similar Products

ActiveLED Street Lighting Products provide superior surface illumination for increased safety and security as brighter, whiter light makes it easier to see detail and color. ActiveLED fixtures direct all light evenly to the target surface minimizing light pollution outside the targeted area while improving overall visibility.

ActiveLED® Technology

ActiveLED uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than fluorescent light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

The second diffuser completely seals the underside of the fixture to make it weather-proof and prevent the ingress of the weather and insects.

ActiveLED® Light Pattern Options

The ActiveLED SL-PT series Street Lights are available in either Traditional or Wide light pattern configurations.

The Traditional Pattern, mounted at 20 feet high, projects light 3-4 feet behind the pole and has an illumination pattern on the street-side in an arc of about 30 feet.

The Wide Pattern has a broad uniform light coverage. Mounted at 20 feet high, it has a very precise 1-2 foot curb-side cut-off with very little light projected behind the curb line. It has an illumination pattern on the street-side in an arc of about 40-50 feet on each side of the curb line extending to 60 feet perpendicular at 90 degrees from the curb line on the street side.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED Elements, fixtures, and Driver / Power Supplies.

Extended 2 year Warranty is available when a SL1 Series fixture is used in conjunction with an ActiveLED Surge Protection Device (SPD). See “Limited Warranty for ActiveLED Lighting Products” or to see the warranty document CLICK HERE

ActiveLED is an ISO 9001:2000 company, registered under BSI certificate FM-1880. ActiveLED provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

SL1-PT Series Street Light Options & Selections

• LED Light Output: 24, 48 or 72 Watt LEDs (26, 50 or 75 Watt Fixtures)
• Light Pattern: Traditional, Wide, Xtra-Wide or All-Forward
• Fixture Color: Silver, White, Charcoal Grey, Bronze or Brown
• Second Diffuser: Etched or Clear
• Daylight Sensor: Built-in, user enables or disables via switch
• Energy Management: Optional Motion Sensor, Dimming, IR Receiver
• Solar Options: AC only, AC with Solar Backup or Solar Only

NOTE: Pole and Pole Base are not included in the price.

ActiveLED® SL1-PT Series sample Part Numbers:

00-27-1606-5528 (Traditional Pattern)
00-27-1606-5550 (Traditional Pattern)
00-27-1606-5528W (Wide Pattern)
00-27-1606-5550W (Wide Pattern)


Technical Information

Input Voltage:• Auto-sensing 100..277V AC, 50/60 Hz
• Digital Power Source, dedicated circuit strongly recommended
Power Statistics:Dependent upon model selected:
• 24, 48 or 72 Watt LED
• 26, 50 or 75 Watt Fixtures
Power Factor:> 0.95 (at 208 Volts)
Listings & TestscUL Listed Driver, suitable for damp locations.
TM21 based on CALIPER ISTM Test to UL1598
CALIPER LM-79 Report, LM-80 info available
CE File, RoHS compliant, IP66 Rated.
Conforms to FCC Part 15.19 Subpart B Class A
Operating Temp:-58° F to +149° F (-50° F to +65° C)
Dimensions:

Weight:
6"W x 4"H x 30"L(15.2 x 10.2 x 76.2 cm)


20.5 lbs (9.3 Kg)
CCT Color Temperature:2700K, 3000K, 3500K, 4000K or 5000K, in accordance with ANSI C78.377A
Pole Mount:Accommodates up to 3.15" (80mm) Outer Diameter Pole

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
