GU-W Series of ActiveLED® General Utility WallPack Light Fixtures


  • GU-W Series of ActiveLED® General Utility WallPack Light Fixtures - Low cost high-performance WallPack for installation applications to 10 feet

  • Low power consumption - see table for details

  • Replaces up to 175 Watt conventional lighting bulb

  • May replace any 6" x 12" legacy Wall Pack (designed to cover marks left by previous fixture

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Additional Power Savings with LightSpace Management can be achieved when DC-powered GU-W fixtures are attached to a remote ActiveLED Power Supply / Driver:
    • Motion Sensor
    • Daylight Sensor
    • LightSpace Manager
    • Battery Backup for
    emergency lighting

    EXAMPLE:
    A 75 Watt ActiveLED remote Power Supply that is dimmed down to light level 40, when there is no motion sensed, consumes just 6.75 Watts (9% of 75 Watts), saving 68.25 Watts, 91%

  • Fully weatherproofed against dust and insects (IP64 rated) and Powder Coated for a maintenance-free and aethestically-pleasing architectural accent

  • Available in Silver, Brown, Bronze, White or Charcoal Grey. Other colors available on request



GU-W Series of ActiveLED® General Utility WallPack Light Fixtures - Low cost high-performance WallPacks for indoor and overhang applications to 10 feet

New generation office lighting combines state-of-the-art LED, electronic and mechanical design.

The ActiveLED® General Utility WallPack Light consumes at least 50-85 percent less energy than conventional lighting.

With its patented design and superior LED elements, the ActiveLED General Utility WallPack Light is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing bulbs and ballasts can be hazardous and expensive.

Significant savings from not having to maintain and renew ballasts and sodium or HID lamps in light fixtures, reduced heat generation and energy use justify the initial outlay.

ActiveLED® GU-W General Utility WallPack Product Overview

The ActiveLED GU-W Series light comes in a choice of wattages and fixture colors to accommodate a broad range of applications.
For example, the CCT5000K color range is a bright light and a high color temperature that closely emulates natural daylight, ideal for security camera applications. The CCT2700K color range is a "warmer" light that compliments architectural earth tones. The following specifications are for fixtures configured for CCT5000K:

Product Code

Fixture Length

Fixture Wattage

Light Output

Suggested Mount Height

GU-W12-5006

12" long

7 Watt

577 Lumens

2.8 m / 9 ft

GU-W12-5012

12" long

14 Watt

1,150 Lumens

3.0 m / 9.5 ft

GU-W12-5018

12" long

21 Watt

1,782 Lumens

3.1 m / 10 ft

Configuration options for GU-W Series General Utility WallPacks:

ActiveLED General Utility WallPack fixtures can be factory-configured from the following choices of features and capabilities:

● Choice of 6, 12 or 18 Watt LEDs (7, 14, 21 Watt Fixtures)

● Fixture color selections - Brown, Silver, White, Bronze, Charcoal Grey

● Select CCT color temperature - 2700K, 3000K, 3500K, 4000K or 5000K

● With or Without integrated Power Supply / Driver

NOTES

● Voltage-specific power supply, specify AC voltage at time of ordering

Optional DC-Powered GU-W Series General Utility WallPack Lights

For applications where low-voltage DC power at the fixture is preferred or where ActiveLED LightSpace energy management capabilities are required, any GU-W fixture can be supplied without a power supply for connection via low-voltage wiring (48 VDC) to a remote ActiveLED power supply installed in a conveniently safe location.

ActiveLED® Technology

ActiveLED uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than fluorescent light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Architectural Features

ActiveLED wall light fixtures run much cooler than a conventional incandescent or fluorescent light fixture and half the weight putting less stress on the wall structure.

Installing the ActiveLED® GU-W Series General Utility WallPack

The General Utility WallPack is designed to make the installation process as easy and straight-forward as possible.

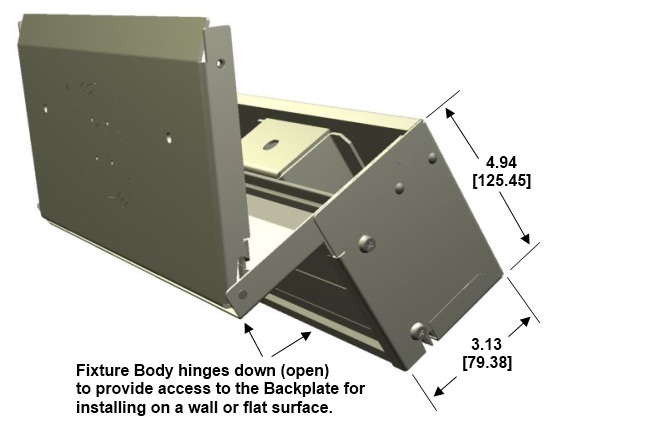

● The main fixture body hinges open to provide access to the mounting backplate

● The fixture can even be unclipped from the back-plate if this makes the installation process easier

● The Back-plate has pre-formed holes for mounting to a wall or flat surface

● Punch-outs provide optional direct mounting to a standard Junction Box, as well as AC line feed access

● The space between the main fixture and the back-plate acts as a junction box to accommodate wire nuts for
connecting the fixture to the AC line feed

00-27-6591

ActiveLED® Warranties

We provide mechanically robust LED lighting systems; our warranties are 10 years on LED elements, fixtures and power supplies / drivers.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED® GU-W Series Sample Part Numbers:

The PS-W Series is available in a choice of colors, the following is a sample of the part numbers for Bronze fixtures:
GU-W06W-1-D5006BZ, 6" Long 6/7 Watt Bronze
GU-W12W-1-D5012BZ, 12" Long 12/14 Watt Bronze
GU-W24W-1-D5018BZ, 24" Long 18/20 Watt Bronze


Technical Information

Input Voltage:• Voltage-specific, specify at time of ordering from the following options:
(1) 110/120 VAC, 60Hz
(2) 277 VAC, 60 Hz
(3) 100 VAC, 60 Hz
(4) 208 VAC, 60 Hz
(5) 240 VAC, 50 Hz

• Digital Power Source, dedicated circuit breaker strongly recommended
Power Statistics:Dependent on model selected:
• 7 to 21 Watt Fixtures
• 6 to 18 Watt LEDs
Dimensions:


Weight:
12.0" (L) x 4.9" (D) x 3.2" (H) x 6.2" overall height
(30.5 x 12.6 x 7.9 x 15.8 cm)

4.8 lbs (2.2 Kg)
CCT Color Temperatures:

Lumen Lifetime:
2700K, 3000K, 3500K, 4000K or 5000K, in accordance with ANSI C78.377A

90,000 hours (90% Luminous Flux)
Installation:Fixture hinges open to provide access to backplate:
• Holes for 4" wall-mounting box
• Punch-outs for J-Box mounting & AC line cable
• Space between backplate and fixture body
- AC line connection using wire nuts (not supplied)
Operating Temperature:-58° F to +149° F (-50° to +65° C)
Fixture Finish:Brown, Bronze, White, Silver or Charcoal Grey. Other colors available on request
Listings and Tests:cUL Listed Driver, suitable for damp locations.
TM21 based on CALIPER ISTM Test to UL1598
CALIPER LM-79 Report, LM-80 info available
CE File, RoHS compliant, IP66 Rated.
Conforms to FCC Part 15.19 Subpart B Class A
