ActiveLED® Retrofit for

Make Enquiry


  • ActiveLED® Classic "Town & Country" Retrofit for GE Post-Top Exterior Luminaires models TC-100, T10C, T10R.

    26 watt ActiveLED Fixture replaces up to 125 watt Metal Halide electronics

  • Significant Energy Savings (50-85%) and very low maintenance costs compared to conventional high wattage and inefficient bulbs

  • 21st century retrofit ideal for:
    • Walkways
    • Parking lots
    • Pedestrian areas
    • Other public spaces

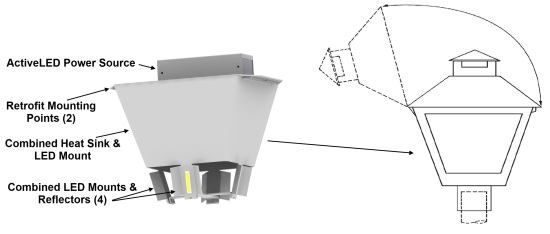

  • Innovative self-contained ActiveLED light engine designed to retrofit Classis GE "Town & Country" Post-Top Exterior Luminaires models TC-100, T10C, T10R:
    • Installs in existing Luminaire
    with two screws
    • Complete replacement for
    inefficient bulb electronics
    • 3.3 lbs replaces over 10 lbs
    of legacy electronics

  • The ActiveLED Town & Country Retrofit's innovative design delivers the maximum possible light to the surrounding public space while eliminating light trespass to adjacent properties

    CCT color choice of 2700K, 3000K, 3500K, 4000K and 5000K in Accordance with ANSI C78.377A

  • Improved light quality and illumination uniformity:
    • Lumen Lifetime of 90,000
    hours, 90% Luminous Flux

  • Optional energy management features provide additional energy savings, including:
    • Motion Sensor or
    • Daylight Sensor
    • Digital Rotary Dimmer

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points



ActiveLED® Classic "Town & Country" Retrofit for GE Post-Top Exterior Luminaires models TC-100, T10C, T10R, 26 watt LED Fixture replaces up to 125 watt Metal Halide bulb and transformer.

Provides a 21st century solution for "classic" Town & Country" Post-Top exterior light fixtures with an energy efficient, high performance LED retrofit with 26 watts of LEDs.

The U.S.-manufactured ActiveLED® Classic "Town & Country" Retrofit is an innovative, self-contained LED light engine designed to easily replace the inefficient, high-wattage light bulb assembly in most existing GE Exterior Post-Top fixtures, providing energy savings of 50-80 percent.

Municipalities, universities and colleges use Vintage style lamplights for roadways, sidewalks and public spaces in historical and residential neighborhoods. Typically, these lights have large acrylic or glass globes and cast aluminum bases that conceal 175-watt Metal Halide light bulbs and electronics that need frequent replacement.

The existing lamplight can be retrofitted with the low-wattage ActiveLED light and still have the same “old town” characteristics. The only noticeable difference in its outward appearance is a better quality of light, which helps to improve the safety value of its surroundings.
Ringdale’s patented LED technology also ensures a long life span of 90,000 hours (24/7 is 8,760 hours per year), lowering the bottom line when it comes to maintenance and operational costs.

The ActiveLED Classic "Town & Country" Light Retrofit meets many municipalities’ latest sustainability mandates for reducing energy usage. For applications where lower light levels would be appropriate during periods of inactivity, the retrofitted GE Town & Country lamplight can be configured with a digital dimmer and motion sensor.

The innovative design of the ActiveLED "Town & Country" Retrofit is fully dark sky compliant and delivers the maximum possible light to the surrounding public space while eliminating light trespass to adjacent properties.

ActiveLED® Classic "Town & Country" Retrofit Product Overview

Ringdale provides five models of ActiveLED Classic "Town & Country" Retrofits to GE Post-Top Luminaires for different lighting applications:

Town & Country
Retrofit
Product Code

Town & Country
Retrofit
Suitability

Town & Country
CCT Color
Options

Town & Country
Retrofit
Fixture Wattage

Town & Country
Light Equivalece
Incandescent / FL

Suggested
Mount
Height, M / Ft

T&C 5526-R

Walk Path

5000K

26 Watts

225 / 100 watts

4.0m / 13 ft

T&C 4026-R

Walk Path

4000K

26 Watts

225 / 100 watts

4.0m / 13 ft

T&C 3526-R

Parking Lot

3500K

26 Watts

225 / 100 watts

4.0 m / 13 ft

T&C 3026-R

Pedestrian Area

3000K

26 Watts

225 / 100 watts

4.0 m / 13 ft

T&C 2726-R

Pedestrian Area

2700K

26 Watts

225 / 100 watts

4.0 m / 13 ft

Removing Existing GE Town & Country Luminaire Bulb & Electronics Assembly

It is a very straightforward process to remove the existing GE Luminaire electronics assembly in preparation for installing the ActiveLED Town & Country Retrofit, as described below.
Before starting any disassembly / assembly work, first disconnect the AC power from the Post Top Luminaire.

Hinge open the top of the Luminaire.
Remove existing Bulb, Bulb Holder and Ballast Electronics from the base of the fixture out through the top of the fixture(details may vary slightly based on the model of Luminaire).
Thread the AC cabling from the ActiveLED Town & Country retrofit down the inside of the Luminaire and connect to the AC line feed.
Carefully lower the complete ActiveLED Retrofit assembly into the top of the Luminaire and secure to the top rim of the Luminaire using two existing machine screws.
Reconnect the AC power to verify that the installation is correct and the ActiveLED Retrofit is illuminated.
Close and seccure the top of the Luminaire.

The existing electronics assembly will need to be disposed of safely and in accordance with local regulations.

00-27-2710-5526

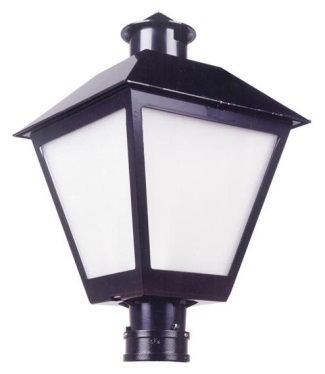

GE Town & Country Luminaire with ActiveLED® Retrofit Technology Installed

The following illustrates a GE Town & Country Luminaire with its original legacy electronics removed and the ActiveLED Town & Country Retrofit installed and fully functional.

00-27-2710-5526

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than current HID technology (Metal Halide and High Pressure Sodium). Our state-of-the-art electronics monitor current and temperature of the LED substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements and fixtures, 5 years on power supplies / drivers.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTE: Town & Country Luminaire fixture, glass and pole are not included in the ActiveLED retrofit price.

ActiveLED® Town & Country Retrofit Part Number:

00-27-2710-5526-R, CCT5000K
00-27-2710-4026-R, CCT4000K
00-27-2710-3526-R, CCT3500K
00-27-2710-3026-R, CCT3000K
00-27-2710-2726-R, CCT2700K


Technical Information

Input Voltage:• Auto-sensing 100..277V AC, 50 / 60 Hz
• Digital Power Source, dedicated circuit strongly recommended
Power Stastics:24 LED Watts, 26 Fixture Watts
Power Factor:~ 0.95
Listings & TestscUL listed, CE, suitable for damp locations.
RoHS compliant.
LM-79 and LM-80 info available.
Conforms to FCC Part 15.19 Subpart B Class A
Operating Temp:-40..+60° C (-40..+140° F)
Dimensions:11.65" overall height, 9.8" wide x 12.4" long (29.6 x 24.9 x 31.4 cm)
Weight:3.3 lbs (1.5 Kg)
CCT Color Temperatures:2700K, 3000K, 3500K, 4000K or 5000K in Accordance with ANSI C78.377A
