SBGR-M Series of ActiveLED®


  • SBGR-M Series of ActiveLED® Shoebox Light Fixtures with Integrated Motion Sensor & IR Receiver.

    "Golden Ratio" ShoeBox Design for Streets, Parking Lots and Walkways, choice of 26, 50 or 75 Watt fixtures, Significant Energy Savings compared to convential Street and Parking Lot lighting

  • New or Retrofit Lighting, external design is compatible with existing "ShoeBox" light fixtures.

    Integrated IR Receiver (Passive Infra-Red) allows the SBGR-M fixture to be remotely managed and reprogrammed using the optional ActiveLED Remote Hand-Held IR Programmer

  • Improved light quality and uniformity with very low maintenance costs and a Lumen Lifetime of 90,000 hours
    (90% Luminous Flux)

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Daylight Sensor included (with manual override switch).
    Integrated Motion Sensor / IR Receiver - intelligent controls for additional energy savings:

    EXAMPLE:
    A 75 Watt SB-GR fixture that is dimmed down to light level 40 when there is no motion sensed consumes just 6.75 Watt (9% of 75 Watt), saving 68.25 Watt, 91%

  • Choice of light fixture wattage (26, 50 or 75) to suit different applications or mounting heights, see table for details

  • Choice of Silver, White, Charcoal Grey, Bronze or Brown finish. Custom colors available on request

  • Optional Extension / Standoff Kit mounts the ShoeBox fixure 6.5" from the square mounting pole, also required if two or more ShoeBox fixtures are to be mounted on one pole



SBGR-M Series of ActiveLED® Shoebox Light Fixtures with Integrated Motion Sensor & IR Receiver, "Golden Ratio" Design for Streets, Parking Lots and Walkways

Cost effective to install and with 24, 48 or 72 Watt LED fixtures is similar to 450 to 600 Watt HPS / HID bulb - Mast mountable

The ActiveLED® SBGR-M Golden Ratio ShoeBox Light consumes at least 50-85 percent less energy than conventional bulb lighting and has a built-in dusk-to-dawn sensor and integrated Motion / IR Receiver that provide additional energy savings.

With its patented design and superior LED elements, the ActiveLED SBGR-M ShoeBox Light is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing bulbs and ballasts can be hazardous and expensive.

Significant additional energy savings from the device's Daylight Sensor and integrated Motion Sensor / IR Receiver features.

The integrated IR Receiver (Passive Infra-Red) allows the IR Receiver (and therefore the attached SBGR-M fixture) to be remotely managed and reprogrammed using the optional ActiveLED Remote Hand-Held IR Programmer.
For example, to keep-up with seasonal lighting changes (Summer versus Winter), the maximum and minimum light levels, timers and dimming parameters of the ShoeBox fixture can be reprogrammed using the remote IR Programmer from a distance of up to 65 feet.

ActiveLED® SBGR-M Series Product Overview

Ringdale provides three versions of ActiveLED SBGR-M Series ShoeBox Lights in five standard colors (Silver, White, Charcoal Grey, Bronze and Brown) for different applications:

Product Code

Application

Fixture Wattage

Light Output

Suggested Mount Height

SBGR-5024M

Parking Lot / Walkway

26 watts

~2,160 Lumens

5.0 m / 16 ft

SBGR-5048M

Parking Lot / Walkway

50 watts

~4,300 Lumens

6.0 m / 20 ft

SBGR-5072M

Street / Parking Lot

75 watts

~6,200 Lumens

7.0 m / 22 ft

ActiveLED SBGR-M ShoeBox Schematic

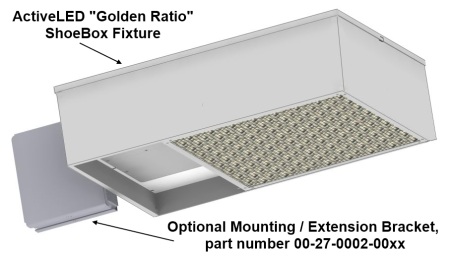

The following depicts the SBGR-M fixture configured with the "patterned" glass diffuser and with the optional Extension/ Mounting Bracket attached.
This bracket extends the light fixture 6.5" from the square mounting pole to emulate legacy bulb-technology ShoeBox installations. It is also required if two or more SBGR-M fixtures are to be installed on a single square pole.

00-27-1618-SBGR Drawing

The version of SBGR-M fixture shown is configured with a second diffuser for an Xtra-Wide light pattern. The integrated Junction Box is accessed from the recessed part of the fixture.

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than conventional HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® SBGR-M Series Fixture Options & Selections

LED Light Output 24, 48 or 72 Watt LEDs (26, 50 or 75 Watt Fixtures)
LED Light Pattern Traditional, Wide or Xtra-Wide (Type V)
Fixture Color Silver, White, Charcoal Grey, Bronze or Brown
Daylight Sensor Built-in, user enables or disables via switch
Energy Management Optional Motion Sensor, Dimming, IR Receiver
Second Diffuser • Recommended, Mandatory with Xtra-Wide configuration
• Traditional or Wide - select Mottled or Clear Glass
Mounting Option (A) Optional Adapter for mounting ShoeBox on a Round Extension Arm
(Part Number 00-27-0002-0003)
Mounting Option (B) Optional Extension / Standoff Kit mounts the ShoeBox fixure 6.5" from the square mounting pole. Also required if two or more ShoeBox fixtures are to be mounted on a single square pole.
(Part Number 00-27-0002-00xx)
Mounting Option (C) Optional Adapters for mounting on a Round / Square / Wood Pole
(Part Number 00-27-0009-0001, 00-27-0009-0002)

ActiveLED® Warranties

We provide mechanically robust outdoor and indoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTES:
Pole and Pole Base are not included in the price.

ActiveLED® SBGR-M ShoeBox Series sample Part Numbers:

00-27-1618-5527M, 26 Watt Silver
00-27-1618-5552M, 52 Watt Charcoal Grey
00-27-1618-5577M, 75 Watt Brown


Technical Information

Input Voltage:• Auto-sensing 100..277V AC, 50/60 Hz
• Digital Power Source, dedicated circuit strongly recommended
Power Statistics:Dependent on model selected:
• 26, 50 or 75 Watt Fixtures
• 24, 48 or 72 Watt LEDs
Listings & Tests:cUL Listed Driver, suitable for damp locations.
TM21 based on CALIPER ISTM Test to UL1598
CALIPER LM-79 Report, LM-80 info available
CE File, RoHS compliant, IP66 Rated.
Conforms to FCC Part 15.19 Subpart B Class A
CCT Color Temperature:2700K, 3000K, 3500K, 4000K or 5000K (recommended) in accordance with ANSI C78.377A
Power Factor:> 0.95 (at 208 Volts)
Dimensions:

Weight:
22" (L) x 16" (W) x 6" (H)(55.9 x 40.6 x 15.2 cm)

32 lbs (14.5 Kg) (with glass diffuser)
Operating Temp:-58° F to +149° F (-50° F to +65° C)
Equivalence:150 - 600 watts HPS / HID

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale.com for Terms and Condtions of Sale and Service.
