Cost effective to install - Light output similar to 75-175 watt legacy bulb fixture, - attaches directly to ceiling or wall structure

The Ringdale ActiveLED^® GU-L Series Small General Utility Light is an energy efficient, cost effective and high performance LED light for public space areas in facilities such as Apartment Complexes, Housing Projects, Condominiums, Educational Facilities, Hospitals and Nursing Homes.

It is ideally suited for illuminating "public space" and general utility areas such as corridors, walkways, entranceways and hallways - providing a safer, more secure environment.

The ActiveLED Small General Utility Light consumes at least 50-85 percent less energy than conventional lighting and its optional motion sensor provides additional and significant energy savings.
With its patented design and superior LED elements, the ActiveLED General Utility Light is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing lights can be hazardous and expensive.

GU-L Series Small Product Overview

Ringdale provides a comprehensive range of GU-L Series ActiveLED Small General Utility Light fixtures and a choice of CCT color temperatures are available (2700K, 3000K, 3500K, 4000K, 5000K) for different applications. For example - CCT3000K or 3500K for a warm color temperature that compliments earth tones and CCT5000K that closely emulates natural daylight, the following lists just a few of the GU-L Small selections:

Product Code	Application	Length	Fixture Wattage	Light Output	Suggested Mount Height
GU-L06-5006	General Utility	6 inches	8 watts	Lumens TBD	2.5 m / 8 ft
GU-L12-5012	General Utility	12 inches	14 watts	Lumens TBD	2.5 m / 8 ft
GU-L18-5018	General Utility	18inches	20 watts	Lumens TBD	3.0 m / 10 ft
GU-L18-5024	General Utility	18 inches	26 watts	Lumens TBD	3.5 m / 11 ft

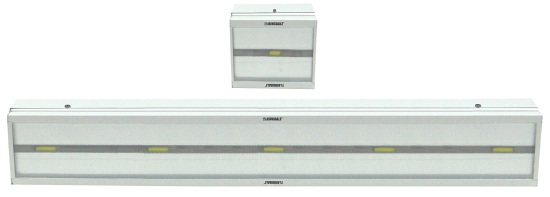

The ActiveLED Small General Utility Light Series is available in 6", 12"or 18" lengths and the following depicts a 6 inch and a 24 inch example.

Optional DC-Powered GU-L Series General Utility Lights

For applications where low-voltage DC power at the fixture is preferred or where ActiveLED LightSpace energy management capabilities (EDSaP) are required, any General Utility Light can be supplied without a power supply for connection via low-voltage wiring (48 VDC) to a remote ActiveLED power supply installed in a safe location.

ActiveLED^® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than fluorescent light fixturers. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED^® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED^® Warranties

We provide mechanically robust indoor and outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and power supplies / drivers.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED^® GU-L Series Sample Part Numbers:
GU-L06S-1-D50R06WH (6", 6/7 Watt CCT5000K White)
GU-L12S-1-D50R12WH (12", 12/14 Watt CCT5000K White)
GU-L18S-1-D50R18WH (18", 18/20 Watt CCT5000K White)
GU-L18S-1-D50R24WH (18", 24/26 Watt CCT5000K White)

NOTES

● Mounting hardware is not included in the price.
● Voltage-specific power supply, specify AC voltage at time of ordering.

Technical Information

Input Voltage:	• Voltage-specific, specify at time of ordering from the following options: (1) 110/120 VAC, 60Hz (2) 277 VAC, 60 Hz (3) 100 VAC, 60 Hz (4) 208 VAC, 60 Hz (5) 240 VAC, 50 Hz • Digital Power Source, dedicated circuit breaker strongly recommended
Power Statistics:	Dependent on model selected: • 8 to 26 Watt Fixtures • 6 to 24 Watt LEDs
Power Factor:	> 0.95 (at 208 Volts)
Listings & Tests	cUL Listed Driver, suitable for damp locations. TM21 based on CALIPER ISTM Test to UL1598 CALIPER LM-79 Report, LM-80 info available CE File, RoHS compliant, IP66 Rated. Conforms to FCC Part 15.19 Subpart B Class A
Operating Temperature:	-58° F to +149° F (-50° C to +65° C)
Dimensions: Weight:	4.1" W x 3.0" H (10.4 x 7.6 cm). Available in 6", 12" & 18" lengths 18" = 7.2 lbs (3.1 Kg)
CCT Color Temperatures:	Choice of 2700K, 3000K, 3500K, 4000K and 5000K, in accordance with ANSI C78.377A
Mounting:	Attaches directly to ceiling or wall structure using 2, 3 or 4 screws (screws not included)

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
