Adapter Bracket Kit, Adapts ActiveLED® square-pole mounting brackets for installation on a round pole


  • Round Pole Bracket Kit, Adapts most ActiveLED® 00-27-0009 Series square-pole brackets for installation on a round pole
  • All key components are 12 Gauge 304-2B unpainted Stainless Steel for longevity

  • Adapter Kit consists of four Round Pole Adapters

  • Mounting hardware (bolts, nuts, washers) not included, mounting hardware is part of the ActiveLED Square Pole Mounting Assemblies

  • Prerequisites:
    Most ActiveLED Square Pole Mounting Bracket Assemblies

  • Available in Unpainted Stainless Steel for longevity

  • ActiveLED - Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • ActiveLED - Available fixture options for even greater energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Dimming capabilities

    EXAMPLE:
    A 75 watt ActiveLED Streetlight that is dimmed down to light level 40, when there is no motion sensed, consumes just 6.75 watts (9% of 75 watts), saving 68.25 watts, 91%



Round Pole Adapter Bracket Kit, Adapts ActiveLED® 00-27-0009 Series Square-Pole Brackets for installation on a Round, Hexagonal or Octagonal pole

Bracket Kit adapts an ActiveLED® Square-Pole mounting assembly to a Round Pole, providing flexible mounting options

Sturdy design adapts any ActiveLED Square Pole mounting bracket for mounting on a Round Pole, particularly where drilling holes in the pole is impossible or inadvisable, since the adapter clamps around the pole and negates the need for drilling holes.

The Round Pole Adapter Kit is designed for easy installation with all parts pre-drilled and ready for assembly. The Adapters are sturdily made from 12 gauge 304-2B Stainless Steel and are suitable for use with round, hexagonal or octagonal poles - wood, steel, concrete or composite pole construction.

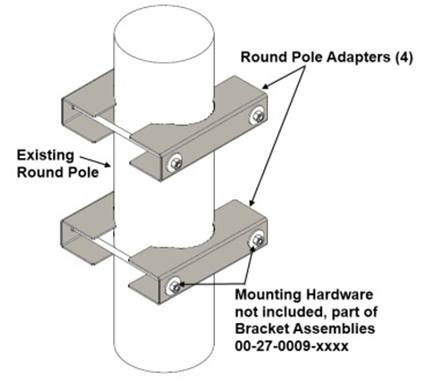

Schematic of the Adapter Bracket Assembly

Installing the Adapter Bracket is a very simple and straightforward process.
The adapter brackets "clamp" around the round pole and any suitable ActiveLED square pole mounting bracket is then attached to the adapters to provide a snug and secure installation.
The following schematic outlines the main components of the round pole adapter bracket which uses the installation hardware (bolts, nuts, washers) that is included in the 00-27-0009 series mounting assemblies.

00-27-0009-0100

Round Pole Adapter Kit Contents

• Round Pole Adapter (4)

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Round Pole Adapter Kit.

Ringdale is an ISO 9001:2008 company, registered under BSI certificate FM-01880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

Prerequisites

Requires an ActiveLED 00-27-0009 Series Square Pole Mounting Bracket Assembly, see separate datasheets for more details.

NOTES:
Mounting hardware not included, hardware included in 00-27-0009 Series mounting bracket assemblies, sold separately.

Round Pole Adapter Kit Part Number:

00-27-0009-0100, Unpainted Stainless Steel


Technical Information

Construction Material:All key components are 12 Gauge 304-2B unpainted Stainless Steel
Total Weight:4.5 lbs complete (2.1 Kg)
Kit Contents:Round Pole Adapters (4)
Dimensions:9.0" L x 2.0" W x 2.8" H (22.9 x 5.1 x 7.1 cm)
Mounting Pattern:Two 0.4 diameter holes (1.0 cm) on each Adapter at 7.0" centers (17.8 cm)
Round Pole O/D Sizes:Accomodates 4" Minimum, 7" Maximum
Prerequisites:Requires one ActiveLED Square Pole Mounting Bracket Assembly
