PTH Series ActiveLED® Horseshoe Bay Post-Top Luminaire


  • PTH Series ActiveLED® "Horseshoe Bay" Post-Top Luminaire - Up to 15 watt LED fixture provides the lighting equivalence of a 150 watt Incandescent or 42 watt Compact Fluorescent Lamp - Mounts to a 6" Square Post or Pillar

  • Significant Energy Savings (50-85%) and very low maintenance costs compared to conventional high wattage and inefficient lamps

  • High-efficiency traditional-looking Luminaire as a 21st century solution for Post-Top lighting applications ideal for:
    • Outdoor Walkways
    • Entranceways
    • Driveways
    • Fence / Wall Corners

  • Choice of fixture colors include Bronze, Brown, Charcoal-Grey, Copper, Rust, Silver and White.
    Other colors available on request

  • The ActiveLED "Horseshoe Bay" Post-Top Luminaire's innovative design delivers the maximum possible light to the surrounding public space for the minimum amount of energy

  • Superior light quality and illumination uniformity:
    • Lumen Lifetime of 90,000
    hours, 90% Luminous Flux

  • CCT color choice of 2700K, 3000K, 3500K, 4000K and 5000K in accordance with ANSI C78.377A

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points



PTH Series ActiveLED® Post-Top "Horseshoe Bay" Luminaire - Up to 15 watt LED fixture provides the lighting equivalence of a 150 watt Incandescent or 42 watt Compact Fluorescent Lamp

Provides a high-efficiency Luminaire as a 21st century solution for traditional-looking Post-Top lighting applications - 15 watt LED luminaire generating the light equivalence of up to a 150 watt lamp.

The U.S.-manufactured ActiveLED® "Horseshoe Bay" Post-Top Luminaire is an innovative, high-performance LED light engine providing energy savings of 50-80 percent compared to legacy lamp technology.

Housing developments, commercial offices, libraries, municipalities, universities and colleges require Post-Top style luminaires for illuminating and highlighting outdoor walkways, entrance ways, driveways and fence / wall corners. The "Horseshoe Bay" Post-Top Luminaire is available in various colors and configurations to complement most architectural designs.

ActiveLED’s patented LED technology also ensures a long life span of 90,000 hours (24/7 is 8,760 hours per year), lowering the bottom line when it comes to maintenance and operational costs.

The ActiveLED PTH Post-Top "Horseshoe Bay" Luminaire meets many commercial, residential and municipalities’ latest sustainability mandates for reducing energy usage.

ActiveLED® PTH Series "Horseshoe Bay" Post-Top Luminaire Product Overview

ActiveLED offers the PTH Series "Horseshoe Bay" Post-Top Luminaire Luminaires in a choice of two wattages and five CCT Colors for different lighting applications, the following is a sample of the available configurations:

Product Code

Suitability

CCT Color

Fixture Wattage

Light Output

PTH-5008

Walkways, entranceways, etc

5000K

8 Watt

Lumens TBD

PTH-4008

Walkways, entranceways, etc

4000K

8 Watt

Lumens TBD

PTH-3508

Walkways, entranceways, etc

3500K

8 Watt

Lumens TBD

PTH-3008

Walkways, entranceways, etc

3000K

8 Watts

Lumens TBD

PTH-2708

Walkways, entranceways, etc

2700K

8 Watt

Lumens TBD

PTH-5015

Walkways, entranceways, etc

5000K

15 Watt

Lumens TBD

ActiveLED® "Horseshoe Bay" Post-Top Luminaire Presentation

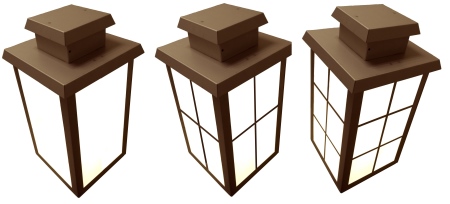

The ActiveLED Horseshoe Bay Luminaire is available from the factory in a choice of three aesthetically pleasing designs - Single-Pane, Four-Pane or Six-Pane configurations / presentations - as illustrated by the following side-by-side comparison:

00-27-2100

ActiveLED® Similar Products

ActiveLED Pathway and Sidewalk Lighting systems are built for performance and reliablity. Backed by a 10 year "No Light Loss" guarantee, our lights offer increased safety and security while reducing costs.

ActiveLED® Technology

ActiveLED uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than current CFL or HID technology (Metal Halide and High Pressure Sodium). Our state-of-the-art electronics monitor current and temperature of the LED substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies.

ActiveLED is an ISO 9001:2000 company, registered under BSI certificate FM-1880. ActiveLED provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED® PTH Series "Horseshoe Bay" Post-Top Luminaire Sample Part Numbers:

PTH1R-1-B5006CP, Single Pane CCT5000K, 8 Watt Copper
PTH1R-1-B4006BZ, Single Pane CCT4000K, 8 Watt Bronze
PTH4R-1-B5006CP, Four Pane CCT5000K, 8 Watt Copper
PTH6R-1-B3506RT, Six Pane CCT3500K, 8 Watt Rust
PTH6R-1-B3006CP, Six Pane CCT3000K, 8 Watt Copper
PTH6R-1-B2706BZ, Six Pane CCT2700K, 8 Watt Bronze

00-27-0015-0000 Optional Adapter:
Mounts the PTH fixture to a 3" O/D Tennon or Round Pole, for more details CLICK HERE


Technical Information

Input Voltage:• Voltage-specific, specify at time of ordering from the following options:
(1) 110/120 VAC, 60Hz
(2) 277 VAC, 60 Hz
(3) 100 VAC, 60 Hz
(4) 208 VAC, 60 Hz
(5) 240 VAC, 50 Hz

• Digital Power Source, dedicated circuit breaker strongly recommended
Power Stastics:Dependent upon model selected:
• 6 Watt LEDs, 8 Watt Fixtures
• 12 Watt LEDs, 13 Watt Fixtures
• 15 Watt LEDs, 16 Watt Fixtures
Power Factor:~ 0.95
Listings & TestscUL Listed Driver, suitable for damp locations.
TM21 based on CALIPER ISTM Test to UL1598
CALIPER LM-79 Report, LM-80 info available
CE File, RoHS compliant, IP66 Rated.
Conforms to FCC Part 15.19 Subpart B Class A
Operating Temperature:-58° F to +149° F (-50° C to +65° C)
Dimensions:Overall: 23.5" tall x 10.3" square

Base: 5.8" square for mounting to a 6" post top

Illumination Windows (4) each 16.0" tall x 9.3" wide
Weight:11.1 lbs (5.0 Kg)
CCT Color Temperatures:2700K, 3000K, 3500K, 4000K or 5000K in accordance with ANSI C78.377A
