ActiveLED® Explorer Energy Monitor - kWh sub meter for commercial, home and industrial applications


  • Monitors power usage on up to 3 separate phases

  • Informative Real-time readings in colorful, easy to read graphs, including:
    • Load views in Voltage,
      Current, and kW
    • Voltage Sine wave of current line conditions (Voltage)
    • Accumulated power usage
      per phase or in total
  • Reports generated in Open RTF Text or XLS format for:
    • Last 24 hours,
    • last 7 days,
    • last 31 days and
    • current year
  • Stores power usage internally and data logging of voltage and power usage externally:
    • Internally store up to 8 years of data on Internal FLASH
    • Externally store data to either an included 2GB USB Flash Drive or to a service via Ethernet
  • Six user defined e-mail alarms for:
    • power failures,
    • brown-outs and
    • over voltage
  • Power over Ethernet (POE) enabled

  • Real Time Clock (RTC) with battery backup

  • No Separate Fees: All reports are generated on the device and do not require a data subscription service



ActiveLED® Explorer Energy Monitor - kWh sub meter for up to 3 phases.

The ActiveLED® Explorer Energy Monitor allows for the monitoring and reporting of a building’s electricity usage in real time via Ethernet or a browser enabled smart phone, tablet or desktop computer as well as being used as a sub-meter

Colorful graphs and reports allow the user to explore ways to better manage their energy usage and thereby find ways to save money on their electricity bill.

The Explorer Energy Monitor can also send user defined e-mail alarms that alert the user of power failures, brown-outs and over voltage events when connected to wired Ethernet.

The Explorer Energy Monitor is available in both commercial (3 phase) and residential (2 phase and anti phase) versions.

ActiveLED® Explorer Energy Monitor Current Transformers

The ActiveLED® Explorer Energy Monitor Pro accepts current transformers from 10A to 1500A which can be purchased separately. Supplied with the unit are 2 (US Home) or 3 (Professional) current transformer* rated at 150A - 333mV that can be used in applications not exceeding 300A.

The device connects directly to a 480-V 3 phase supply, 3 individual single phases, or a 240-V(2 x 120-V Anti-phase) feed. When installing always adhere to local electrical, fire and safety codes.

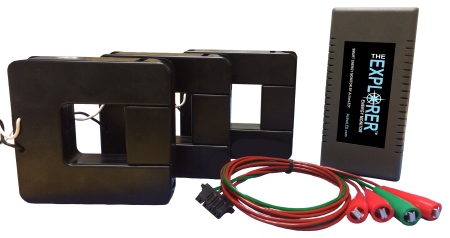

ActiveLED® Explorer Energy Monitor Included Components

00-11-0568 EnergyExplorer

• The Explorer Energy Monitor (qty. 1)
• Voltage Clamp Harness* (qty. 1)
• Current Transformer Clamps* (qty. 1-3)
• Utility CD (not shown)
• 2GB Formatted USB Flash Drive (not shown)
• All Voltage Wall Power Supply (not shown)
Plug adapters for Australia, Germany, UK and USA supplied with unit.

* Number and size of clamps are determined by the application and the Explorer model ordered.

ActiveLED® Explorer Energy Monitor Warranty and Certifications

Five (5) Year Warranty- The ActiveLED® Explorer Energy Monitor shall conform to its published specifications under normal usage and operating conditions.

ActiveLED® Explorer Energy Monitor Product Models

• P = Professional, 3 Channels including 480V 3-phase supply.
• U = US Home, 2 Channels.
• L = Lite Single Channel (International Residential).

ActiveLED® Explorer Energy Monitor sample Part Numbers

• 00-11-0568-UNV-P, Explorer Energy Monitor with Universal Power Supply, Pro model.
• 00-11-0568-UNV-PW, Explorer Energy Monitor with Universal Power Supply, Pro model with WiFi Option.
• 00-11-0568-UNV-U, Explorer Energy Monitor with Universal Power Supply, U.S. Home model.
• 00-11-0568-UNV-UW, Explorer Energy Monitor with Universal Power Supply, U.S. Home model with WiFi Option.
• 00-11-0568-UNV-L, Explorer Energy Monitor with Universal Power Supply, International Residential model.
• 00-11-0568-UNV-UW, Explorer Energy Monitor with Universal Power Supply, International Residential with WiFi Option.


Select Options

Technical Information

Power Supply:
Power Consumption:
External All Voltage, Input 12 volt DC, 1A Supply

3 Watts
Operating Temperature:-40°C (-40°F) to 85°C (185°F)
Network Type:Ethernet 10/100baseTx, RJ-45
Minimum System Requirements:Internet Explorer Version 10 or higher. Browsers include Google, Chrome, Safari, and other HTML5 and Java compatible browsers
Channel Input Voltage:0 to 480 Volt AC (RMS)
Data Collection:Internally, USB Thumb Drive or via Ethernet to a PC running application
Dimensions:
Weight:
6.5” (L) x 3” (W) x 1-15/16” (H) (16.51 x 7.62 x 7.36 cm)

8 oz
Product Content:• The Explorer Energy Monitor
• 150A current transformers, qty 3
• CD with management software (Utility Disk)
• 2GB Formatted USB Flash
• All Voltage Wall Power Supply (Not Shown)
Plug adapters for Australia, Germany, UK and USA supplied with unit.
