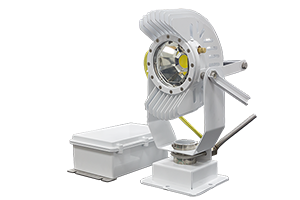

HMM Series of ActiveLED^® Mast Mount or Marine Search and Spot Light for Marine applications where a reliable high-powered Spot Light is mission critical.

The ActiveLED^® HMM High-Mast Marine Search and Spot Lighting is more resistant to shock and temperature. It consumes 70 percent less energy than conventional lighting and additional energy savings can be achieved with the optional lighting management.

The HMM-Series are the lightest by weight, passively cooled High Mast light fixtures on the market with a system efficacy of more than 150 lm/Watt within it's full operating range of -55°C to +60°C.

Because they are passively cooled, meaning no fans or other mechanical parts are involved in the cooling process, there are no moving parts that can fail. The HMM Series of ActiveLED® Marine Search and Spot Light is one of the most reliable Marine LED lights on the market today.

Due to the superior quality and design of the HMM Series of ActiveLED® Marine Search and Spot Light, it is an essential tool for docking, barge handling, perimeter security, search and rescue, and so much more.

With its patented design and superior LED elements, the ActiveLED HMM Marine Light is a reliable light source with a warranted 90,000-hour lumen life, making it a nearly maintenance-free solution for applications where changing lamps and ballasts can be hazardous and expensive.

Fraction of conventional lighting costs and very low maintenance cost. Anti bacterial and anti fungal coating.

The ActiveLED HMM series high-mast tower lights employ separate Driver / Electronics that can be installed with the light on the top of the mast or remotely at the base of the Mast / Tower for ease and convenience of maintenance.

ActiveLED HMM series "search and spot" marine lights are an opportunity to convert to environmentally safe and energy-efficient LED Lighting. One of two beam angles can be specified with order 90° or 120°. The beam angles are +/- 45° for the 90° beam output and +/-60° for the 120° beam output. Other optics available on request. Two-Axis ActiveLED® Mount With Handle for High Mast Tower and Marine Lights - Robust Swivel and Tilt mechanism for Searchlight applications on land or at sea. Swivel Bulkhead Mount Order No: 00-27-0910-0020-WH

All the available light from the HMM fixture is directed onto the lighting target and the employed technology delivers very precise light cut-off, virtually eliminating any light pollution and overspill. The unparallled precision makes the HMM an essential tool for search and rescue, vessel interdiction and perimeter security applications.

ActiveLED^® HMM Series Light Product Overview

ActiveLED provides a comprehensive selection of professional Marine Lighting fixtures configured for varying applications, a selection of which is listed below:

Product Code	Mounting	Fixture Wattage	Lumen Package	Suitable Mount Height
HMM9-SP-DF50R165	Square Pole	175 Watt	26,500 Photopic, 52,000 Scotopic	100-150 Feet
HMM9-4K-DF50R120	Swivel Tennon	120 Watt	18,000 Photopic, 36,000 Scotopic	80-100 Feet
HMM9-RM-DF50R080	Round Arm	80 Watt	12,000 Photopic, 24,000 Scotopic	50-80 Feet
HMM9-EX-DF50R060	Extender Adapter	60 Watt	9,000 Photopic, 18,000 Scotopic	30-50 Feet

ActiveLED^® Technology

ActiveLED uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime warranty of 90,000 hours (90% Luminous Flux).

ActiveLED^® Reflector Technology

We use state-of-the-art reflector technology with a minimal amount of light loss within the fixture providing for reliable maximum lighting efficiency.

ActiveLED^® Warranties

We provide reliable and mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures and Drivers / Power supplies.

ActiveLED is an ISO 9001:2015 company, registered under BSI certificate FM-01880. ActiveLED provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED^® HMM Series Search and Spot Light Sample Part Numbers:

HMM9-SP-DF50R160SL: HM Marine Light, Square Pole Mount, D Pattern Optics,
Clear Glass LED Diffuser, CCT5000K 165 Watt Round LEDs, Silver

HMM9-4K-DF50R120BZ: HM Marine Light, Swivel Tennon Mount, D Pattern Optics,
Clear Glass LED Diffuser, CCT5000K 120 Watt Round LEDs, Bronze

HMM9-RM-DF50R080WH: HM Marine Light, with Round Arm Mount Adapter, D Pattern Optics,
Clear Glass LED Diffuser, CCT5000K 80 Watt Round LEDs, White

HMM9-EX-DF50R060BR: HM Marine Light, with Extender Adapter, D Pattern Optics,
Clear Glass LED Diffuser, CCT5000K 60 Watt Round LEDs, Brown

Technical Information

Input Voltage:	• Auto-sensing 100..277V AC, 50/60 Hz. • 300..480V optional • Digital Power Source, dedicated circuit strongly recommended
Operating Temperature:	-58° F to +149° F (-50° C to +65° C)
Power Statistics:	• 66, 87, 130 or 172 Watt Fixtures • 60, 80, 120 or 160 Watt LEDs
Power Factor, THD:	> 0.90 (at 208 Volts).<20%, typical 9.9%
Fixture Dimensions:	15" (l) x 16" (w) x 18" (h)(?? x ?? x ?? cm)
Fixture Weight:	19 lb (9 Kg)
CCT Color Temperature:	5000K, 4000K or 2700K in Accordance with ANSI C78.377A
Listings and Tests:	UL listed driver, CE, suitable for wet locations. RoHS compliant. IP67 Rated optical assembly. LM-79 and LM-80 info available. Conforms to FCC Part 15.19 Subpart B Class A. Made in USA - ARRA Compliant.

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
