Provides a 21st century solution for "vintage" outdoor post-top style light fixtures with an energy efficient, high performance LED retrofit in 26, 30 or 40 Watt versions.

The U.S.-manufactured ActiveLED^® Lumec Nostalgia Light Retrofit is an innovative, self-contained LED light engine designed to easily replace the inefficient, high-wattage light bulb assembly in an existing Lumec Nostalgia-style fixture, providing energy savings of 50-80 percent.

Many municipalities use post-top style lamplights for roadways, sidewalks and public spaces in historical and residential neighborhoods. Typically, these lights have large acrylic globes and cast aluminum bases that conceal inefficient Metal Halide light bulbs (up to 300 Watt) needing frequent replacement.

The existing lamplight can be retrofitted with the low-wattage ActiveLED light and still have the same “old town” characteristics. The only noticeable difference in its outward appearance is a better quality of light, which helps to improve the safety value of its surroundings. Ringdale’s patented LED technology also ensures a long life span of 90,000 hours, lowering the bottom line when it comes to maintenance and operational costs.

The ActiveLED Classic Lumec Nostalgia light retrofit meets many municipalities’ latest sustainability mandates for reducing energy usage. For applications where lower light levels would be appropriate during periods of inactivity, the retrofitted lamplight can be interconnected with Ringdale’s own intelligent controller providing automatic dimming and on/off capabilities.

ActiveLED^® Retrofit for Classic Lumec Nostalgia Space Requirements

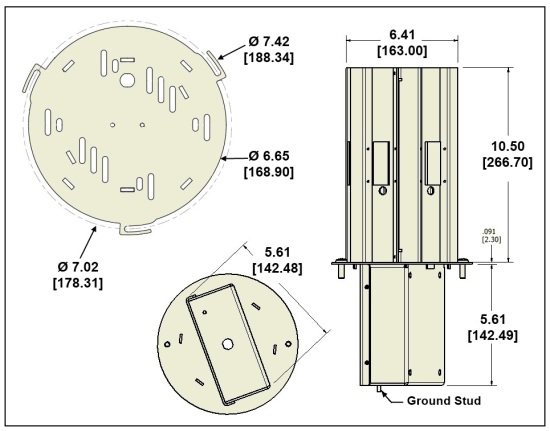

The ActiveLED Retrofit for Lumec Nostalgia requires a minimal amount of space in the existing Lumec Luminaire, as follows:

LEGEND: Measurements in inches, [measurements in mm]

Removing Existing Lumec Bowl & Electronics Assembly

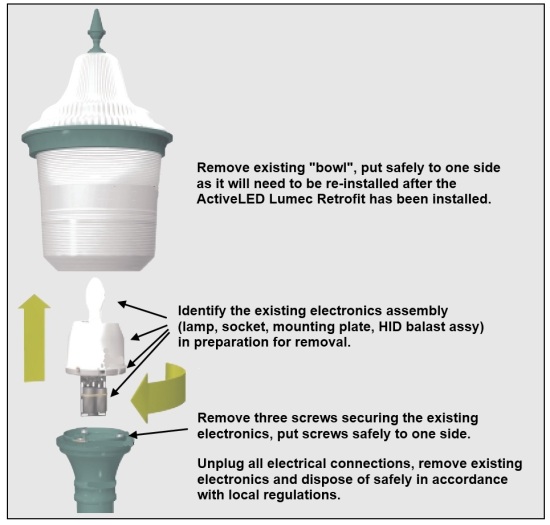

It is a very straightforward process to remove the existing Lumec "bowl" and electronics assembly in preparation for installing the ActiveLED Lumec Retrofit , please refer to the following diagram for more details.

The existing electronics assembly will need to be disposed of safely and in accordance with local regulations.

Lumec Nostalgia Luminaire with ActiveLED^® Retrofit Technology Installed

The following pictures show a Vintage Lumec Luminaire with its original legacy electronics removed and the ActiveLED Lumec Retrofit installed and fully functional. In this diagram the ActiveLED retrofit is colored purely for identification purposes, it is manufactured from unpainted high-grade T-3003 aluminum alloy.

Classic Lumec Retrofit Product Overview

Ringdale provides three models of ActiveLED^® Lumec Retrofits for Classic Lumec Nostalgia fixtures for different lighting applications:

Product Code	Application	Wattage	Light Output	Suggested Mount Height
Lumec-5524-R	Walkway	26 Watt	~2,360 Lumens	Existing Mount
Lumec-5530-R	Pedestrian Area	32 Watt	~2,910 Lumens	Existing Mount
Lumec-5548-R	Parking Lot	40 Watt	~3,640 Lumens	Existing Mount

ActiveLED^® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than current HID technology (Metal Halide and High Pressure Sodium). Our state-of-the-art electronics monitor current and temperature of the LED substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED^® Warranties

We provide mechanically robust indoor and outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTE:
Lumec Vintage fixture, Lumec bowl and pole are not included in the price.

ActiveLED^® Lumec Nostalgia Retrofit sample Part Numbers:

00-27-2713-5524-R, 26 Watt fixture
00-27-2713-5530-R, 32 Watt fixture
00-27-2713-5548-R, 40 Watt fixture

Technical Information

Input Voltage:	• Auto-sensing 100..277V AC, 50 / 60 Hz • Digital Power Source, dedicated circuit strongly recommended
Actual Power: Power Factor:	Dependent upon model selected, see table for details > 0.95 (at 208 Volts)
Listings & Tests	cUL Listed Driver, suitable for damp locations. TM21 based on CALIPER ISTM Test to UL1598 CALIPER LM-79 Report, LM-80 info available CE File, RoHS compliant, IP66 Rated. Conforms to FCC Part 15.19 Subpart B Class A
Operating Temperature: CCT Color Temperatures:	-40..+60° C (-40..+140° F) Choice of 2700K, 3000K, 3500K or 5000K in accordance with ANSI C78.377A
Overall Dimensions: Overall Weight:	16.20" overall height, 6.41" diameter (41.15 x 16.28 cm) 4.0 lbs (1.8 Kg)
Mounting Plate:	• Overall radius 3.71" (9.42 cm) • Three Mounting holes on 3.51" radius (8.92 cm) • Overall thickness of 0.091"
Reflector / Heatsink Assembly:	• 10.50" (H) x 6.41" (Diameter) (26.67 x 16.28 cm) • At least 12.5" height clearance above the Mounting Ring • At least 1" all-round clearance
Power Supply / Driver Assembly:	• 5.61" (H) x 5.61" (W) (14.25 x 14.25 cm) • At least 1" all-round clearance

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
