Provides a 21^st century solution for "vintage" outdoor suspended style light fixtures with an energy efficient, high performance LED retrofit in 20, 26 or 32 Watt versions.

The U.S.-manufactured ActiveLED^® Lumec Candela Light Retrofit is an innovative, self-contained LED light engine designed to easily replace the inefficient, high-wattage light bulb assembly in an existing Lumec Candela-style fixture, providing energy savings of 50-80 percent.

Many municipalities use post-top style lamplights for roadways, sidewalks and public spaces in historical and residential neighborhoods. Typically, these lights have large acrylic globes and cast aluminum bases that conceal inefficient Metal Halide light bulbs needing frequent replacement.

The existing lamplight can be retrofitted with the low-wattage ActiveLED light and still have the same “old town” characteristics. The only noticeable difference in its outward appearance is a better quality of light, which helps to improve the safety value of its surroundings. Ringdale’s patented LED technology also ensures a long life span of 90,000 hours, lowering the bottom line when it comes to maintenance and operational costs.

The ActiveLED Classic Lumec Candela light retrofit meets many municipalities’ latest sustainability mandates for reducing energy usage. For applications where lower light levels would be appropriate during periods of inactivity, the retrofitted lamplight can be interconnected with Ringdale’s own intelligent controller providing automatic dimming and on/off capabilities.

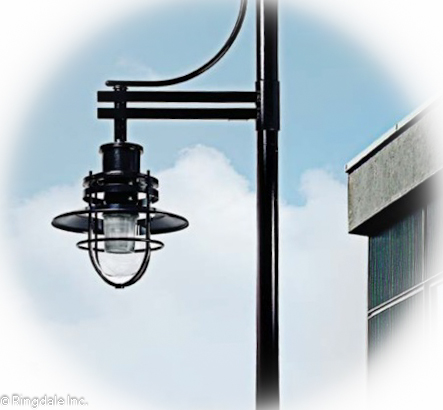

Lumec Candela Luminaire with ActiveLED^® Retrofit Technology Installed

The following is a Vintage Lumec Candela Luminaire with its original legacy electronics removed and the ActiveLED Lumec Candela Retrofit installed and fully functional.

ActiveLED^® Classic Lumec Candela Product Overview

Ringdale provides three models of ActiveLED Retrofits for Classic Lumec Candela fixtures for different lighting applications, each one is available in CCT color of 2700K, 3000K, 3500K, 4000K or 5000K:

Product Code	Application	CCT Color	Wattage	Light Output	Suggested Mount Height
Candela-5518-R	Walkway	5000K	20 Watt	~1,820 Lumens	2.4 m / 8 ft
Candela-5524-R	Pedestrian Area	5000K	26 Watt	~2,360 Lumens	3.0 m / 10 ft
Candela-5536-R	Parking Lot	5000K	32 Watt	~2,910 Lumens	4.0 m / 13 ft

Installing the ActiveLED^® Lumec Candela Retrofit Assembly

It is a very straightforward process to remove the existing Lumec "bowl" and electronics assembly in preparation for installing the ActiveLED Lumec Candela Retrofit:

●	Unplug all electrical connections before starting any work on the Luminaire.
●	Remove existing bowl and grid, put safely to one side as they will need to be reinstalled after the ActiveLED Lumec Candela Retrofit has been installed.
●	Identify the existing electronics assembly (bulb, socket, mounting plate, ballast assembly and mounting screws).
●	Remove the screws and put them safely to one side for use in the reassembly.
●	Remove the existing electronics and dispose of safely in accordance with local regulations.
●	Remove the existing bulb reflector (if installed) and carefully place the ActiveLED Candela Retrofit into the Luminaire, secure with four screws (provided), connect the AC supply line to the power supply (100 to 277 VAC) and reassemble the complete Luminaire using the original screws.
●	Apply AC power to verify that the ActiveLED Retrofit is working satisfactorily before replacing the existing bowl and grid.

ActiveLED^® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than current HID technology (Metal Halide and High Pressure Sodium). Our state-of-the-art electronics monitor current and temperature of the LED substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED^® Warranties

We provide mechanically robust indoor and outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTE:
Lumec Candela Vintage fixture, Lumec bowl and pole are not included in the price.

ActiveLED^® Lumec Candela Retrofit Sample Part Numbers:

00-27-2714-5518-R, 20 Watt fixture
00-27-2714-5524-R, 26 Watt fixture
00-27-2714-5536-R, 32 Watt fixture

Technical Information

Input Voltage:	• Auto-sensing 100..277V AC, 50 / 60 Hz • Digital Power Source, dedicated circuit strongly recommended
Actual Power: Power Factor:	Dependent upon model selected, see table for details > 0.95 (at 208 Volts)
Listings & Tests:	cUL Listed Driver, suitable for damp locations. TM21 based on CALIPER ISTM Test to UL1598 CALIPER LM-79 Report, LM-80 info available CE File, RoHS compliant, IP66 Rated. Conforms to FCC Part 15.19 Subpart B Class A
Operating Temperature:	-58° F to +149° F (-50° C to +65° C)
CCT Color Temperatures:	Choice of 2700K, 3000K, 3500K, 4000K or 5000K in Accordance with ANSI C78.377A
Mounting Plate:	• Overall radius 4.75" (12.07 cm) • Four Mounting holes on 4.5" radius (11.4 cm) • Overall thickness of 0.091"
LED Reflector / Heatsink Assembly:	• 9.7" O/D x 3.0" tall (24.6 x 7.6 cm) • 4.8 lbs (2.2 Kg)
Power Supply / Driver Assembly:	• 7.0" (L) x 5.3" (W) x 2.3" (H) (17.8 x 13.5 x 5.8 cm) • 1.8 lbs (0.8 Kg)

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
