Provides a 21st century solution for Lithonia Gateway VGR2C Wall Mount exterior light fixtures with an energy efficient, high performance 8 Watt LED retrofit

The U.S.-manufactured ActiveLED^® Rhoomba Retrofit is an innovative, self-contained LED light engine designed to easily replace the inefficient, high-wattage light bulb assembly in most existing Lithonia Gateway VGR2C wall or ceiling-mount fixtures, providing energy savings of 50-80 percent.

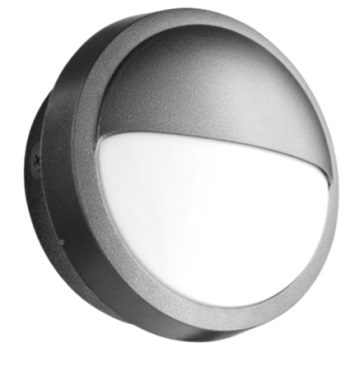

Public and private parking structures in business and residential neighborhoods, municipalities, universities and colleges use Lithonia Gateway style luminaires for sidewalks, walkways and public spaces. The Lithonia VGR2C is a round-eyelid, rough-service wall or ceiling-mounted fixture that has a die-cast aluminum housing and bezel designed to endure extreme environmental conditions and physical abuse, 13.75" outer diameter by 6.88" deep. Typically, these lights have incandescent or compact fluorescent bulbs and ballasts that need regular maintenance.

The existing bulbs can be retrofitted with the low-wattage ActiveLED Rhoomba engine and the Lithonia fixtures still have the same "robust" characteristics. The only noticeable difference in its outward appearance is a better quality of light, which improves the safety value of its surroundings.
Ringdale’s patented LED technology also ensures a long life span of 90,000 hours (24/7 is 8,760 hours per year), lowering the bottom line when it comes to maintenance and operational costs.

The ActiveLED "Rhoomba" Light Retrofit meets many commercial, residential and municipalities’ latest sustainability mandates for reducing energy usage.

The innovative design of the ActiveLED "Rhoomba" Retrofit is fully dark sky compliant and delivers the maximum possible light to the surrounding public space while eliminating light trespass to adjacent properties.

ActiveLED^® Rhoomba Retrofit Product Overview

Ringdale provides five models of ActiveLED Rhoomba Retrofits for Lithonia Gateway VGR2C Wall Mount Luminaires for different lighting applications:

Product Code	Application	CCT Color	Wattage	Light Output	Mount Height
Rhoomba-5508-R	Pedestrian Area	5000K	8 Watt	~ 728 Lumens	Existing Mount
Rhoomba-4008-R	Pedestrian Area	4000K	8 Watt	~ 710 Lumens	Existing Mount
Rhoomba-3508-R	Pedestrian Area	3500K	8 Watt	~ 692 Lumens	Existing Mount
Rhoomba-3008-R	Pedestrian Area	3000K	8 Watt	~ 660 Lumens	Existing Mount
Rhoomba-2708-R	Pedestrian Area	2700K	8 Watt	~ 660 Lumens	Existing Mount

Removing Existing Lithonia Gateway VGR2C Luminaire Bulb & Electronics Assembly

It is a very straightforward process to remove the existing Lithonia Luminaire electronics assembly in preparation for installing the ActiveLED Rhoomba Retrofit, as described below.
Before starting any disassembly / assembly work, first disconnect the AC power from the Wall-Mount Luminaire.

•	Loosen the two or three screws that secure the bezel to the fixture body, safely put to one side for reassembly.
•	Remove existing Bulb, Bulb Holder and Ballast Electronics from the body of the Luminaire by removing two or three machine screws (details may vary slightly based on the model of Luminaire).
•	Connect the AC cabling from the ActiveLED Rhoomba retrofit to the AC line feed within the Lithonia fixture.
•	Carefully place the complete ActiveLED Retrofit assembly into the Luminaire and secure using the two or three existing machine screws.
•	Reconnect the AC power to verify that the installation is correct and the ActiveLED Retrofit is illuminated.
•	Reattach the bezel to the body of the Luminaire.

The existing electronics assembly will need to be disposed of safely and in accordance with local regulations.

ActiveLED^® Rhoomba Retrofit Engine Installed in a Lithonia Gateway VGR2C Luminair

The following illustrates a Lithonia Gateway VGR2C Luminaire with its original legacy electronics removed and the ActiveLED Rhoomba Retrofit engine installed and fully functional.

ActiveLED^® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than current CFL or HID technology (Metal Halide and High Pressure Sodium). Our state-of-the-art electronics monitor current and temperature of the LED substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED^® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTES:
(1) Lithonia Gateway Luminaire fixture, glass and wall mounting are not included in the ActiveLED retrofit price.

(2a) Since existing lens (glass or polycarbonate) for fixture has probably been seriously degraded over time by UV light, the lens should be replaced at the same time as the ActiveLED Engine is installed.

(2b) Alternatively, Ringdale can replace the lens if the Bezel is sent to the Ringdale factory at the time of ordering the retrofit, lens sold and priced separately.

ActiveLED^® Rhoomba Retrofit Part Numbers:

00-27-2717-5508-R, CCT5000K
00-27-2717-3508-R, CCT3500K
00-27-2717-3008-R, CCT3000K
00-27-2717-2708-R, CCT2700K

Technical Information

Input Voltage:	• All Voltage Power Supply 100V...277V-AC, 50/60 Hz. • Digital Power Source, dedicated circuit breaker strongly recommended
Power Stastics:	8 Watt Fixture
Power Factor:	~ 0.95
Listings & Tests	cUL Listed Driver, suitable for damp locations. TM21 based on CALIPER ISTM Test to UL1598 CALIPER LM-79 Report, LM-80 info available CE File, RoHS compliant, IP66 Rated. Conforms to FCC Part 15.19 Subpart B Class A
Operating Temp:	-58° F to 149° F (-50° C to 65° C)
Dimensions:	12.19" outer diameter (30.96 cm), complete with power supply fits within the cavity of the body of the fixture
Weight:	2.2 lbs (1.0 Kg)
CCT Color Temperatures:	2700K, 3000K, 3500K, 4000K or 5000K in accordance with ANSI C78.377A
