ActiveLED® Bega Retrofit for

  • ActiveLED® Bega LED Retrofit for "Bega 3076" Round Wall-Mount Luminaires - 20 Watt ActiveLED retrofit replaces up to 100 Watt Incandescent or 60 Watt Compact Fluorescent Lamp

  • Significant Energy Savings (50-85%) and very low maintenance costs compared to conventional high wattage and inefficient lamps

  • 21st century retrofit ideal for:
    • Hallways
    • Corridors
    • Stairways
    • Atriums
    • Meeting Rooms
    • Ballrooms

  • Innovative self-contained ActiveLED light engine designed to retrofit Bega 3076 wall-mounted 15" Luminaires / Wall Sconces:
    • Installs in existing Luminaire
    with two screws
    • Complete replacement for
    inefficient lamp electronics
    • 2.2 lbs replaces over 5 lbs
    of legacy electronics

  • The ActiveLED Bega Retrofit's innovative design delivers the maximum possible light to the surrounding public space for the minimum amount of energy

  • Improved light quality and illumination uniformity:
    • Lumen Lifetime of 90,000
    hours, 90% Luminous Flux

  • CCT color choice of 2700K, 3000K, 3500K, 4000K and 5000K in accordance with ANSI C78.377A

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

ActiveLED® Bega Retrofit for "Bega 3076" Wall-Mount Luminaires - 20 Watt ActiveLED retrofit replaces up to 100 Watt Incandescent or 60 Watt Compact Fluorescent Lamp

Provides a 21st century solution for Bega model 3076 wall-mount 15" diameter lamp-technology Wall Sconces with an energy efficient, high performance 20 Watt LED retrofit

The U.S.-manufactured ActiveLED® Bega Retrofit is an innovative, self-contained LED light engine designed to easily replace the inefficient, high-wattage light lamp assembly in most Bega 3076 wall-mount fixtures, providing energy savings of 50-80 percent.

Commercial offices, hospitals, libraries, municipalities, universities and colleges use Bega style luminaires for illuminating and accenting hallways, corridors, stairways, atriums and indoor public spaces. The Bega 3076 is a dome-shaped wall sconce that typically has incandescent, compact fluorescent or metal halide lamps and ballasts that need regular maintenance.

The existing lamps can be retrofitted with the low-wattage ActiveLED BegaRetrofit engine and the Bega fixtures still have the same aesthetically-pleasing characteristics. The only noticeable difference in its outward appearance is a better quality of light, which improves the safety value of its surroundings.
Ringdale’s patented LED technology also ensures a long life span of 90,000 hours (24/7 is 8,760 hours per year), lowering the bottom line when it comes to maintenance and operational costs.

The ActiveLED "Bega" Light Retrofit meets many commercial, residential and municipalities’ latest sustainability mandates for reducing energy usage and contains zero mercury.

ActiveLED® Bega Retrofit Product Overview

Ringdale provides five models of ActiveLED Bega Retrofits for Bega 3076 13.75" Wall Sconces for different lighting applications:

Product Code


CCT Color


Light Output

Suggested Mount Height

Bega 5520-R

Bega 3076 fixture


20 Watts

~1,820 Lumens

Existing Mount

Bega 4020-R

Bega 3076 fixture


20 Watts

~1,690 Lumens

Existing Mount

Bega 3520-R

Bega 3076 fixture


20 Watts

~1,560 Lumens

Existing Mount

Bega 3020-R

Bega 3076 fixture


20 Watts

~1,480 Lumens

Existing Mount

Bega 2720-R

Bega 3076 fixture


20 Watts

~1,390 Lumens

Existing Mount

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than current CFL or HID technology (Metal Halide and High Pressure Sodium). Our state-of-the-art electronics monitor current and temperature of the LED substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust indoor and outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies / drivers.

Ringdale is an ISO 9001:2015 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

Removing Existing Lamp & Electronics Assembly from Bega 3076 Luminaire

It is a very straightforward process to remove the existing Bega 3076 Luminaire electronics assembly in preparation for installing the ActiveLED Bega Retrofit, as described below.
Before starting any disassembly / assembly work, first disconnect the AC power from the existing Wall-Mount Luminaire.

Remove Bezel and Glass Dome from existing Bega fixture by undoing two or three machine screws (details may vary slightly based on the model of Luminaire). Retain screws for reassembly of Bezel.
Remove existing Bega fixture complete with Lamp, Lamp Holder and Ballast Electronics from the building and dispose of in accordance with local regulations.
Attach the ActiveLED Retrofit Backplate assembly to the building structure using the existing mounting holes.
Connect the existing AC cabling to the ActiveLED Bega retrofit Power Supply.
Carefully attach the ActiveLED Retrofit LED assembly to the Bega Retrofit Backplate (3 machine screws) and connect the DC cable from the ActiveLEDs to the power supply (2-wire snap-on connector).
Apply AC power to verify that the installation is correct and the ActiveLED Retrofit is illuminated, reattach Bezel / Glass Dome using existing screws.

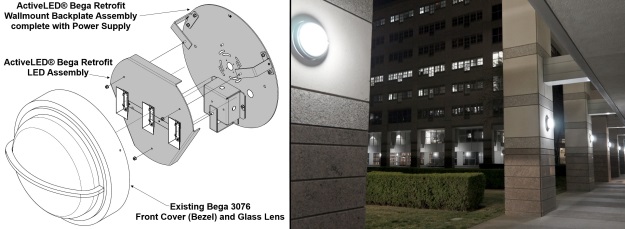

Illustration of ActiveLED® Bega Retrofit

The following illustrates how the two main parts of the ActiveLED Bega Retrofit are assembled / installed and how the existing Bega3076 front cover (Bezel) and Lens (Glass Dome) are attached to the Retrofit. The picture is of ActiveLED Bega Retrofits installed at the IBM campus in Austin, Texas:

00-27-2718 Bega Retrofit

NOTE: Bega bezel and glass are not included in the ActiveLED retrofit price.

ActiveLED® Bega Retrofit Part Numbers:

00-27-2718-5520-R, CCT5000K
00-27-2718-4020-R, CCT4000K
00-27-2718-3520-R, CCT3500K
00-27-2718-3020-R, CCT3000K
00-27-2718-2720-R, CCT2700K

Technical Information

Input Voltage:• 100 .. 277 VAC, 50/60 Hz.

• Digital Power Source, dedicated circuit breaker strongly recommended
Power Stastics:18 Watt LEDs, 20 Watt Fixtures
Power Factor:~ 0.95
Listings & TestscUL Listed Driver, suitable for damp locations.
TM21 based on CALIPER ISTM Test to UL1598
CALIPER LM-79 Report, LM-80 info available
CE File, RoHS compliant, IP66 Rated.
Conforms to FCC Part 15.19 Subpart B Class A
Operating Temperature:-58° F to +149° F (-50° C to +65° C)

13.75" outer diameter x 2.65" deep (34.93 x 16.70 cm)

2.2 lbs (1.0 Kg)
Retrofit Contents:• Retrofit Wallmount Backplate Assy c/w Power Supply / Driver
• Retrofit LED Assy and assorted machine screws
CCT Color Temperatures:2700K, 3000K, 3500K, 4000K or 5000K in accordance with ANSI C78.377A

Caution! All specifications published herein are subject to change without notice. See website for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on for Terms and Condtions of Sale and Service.
