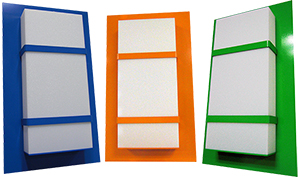

WSF Series ActiveLED® Florida Wall Sconce - LED Lights for Indoor and Overhang / Dry and Damp locations


  • WSF Series ActiveLED® Florida Wall Sconce Lights for Indoor and Overhang / Dry and Damp locations, illuminating Corridors, Hallways, Breezeways and Atriums

  • Very Low power consumption - 7, 14 or 26 Watt for the total fixture - aids functionality and energy efficiency of a building.

  • Surface wall-mounted architectural sconce may replace any existing 12" x 7" Wall Sconce (covers marks left by previous sconce)

  • Standard color finishes are Brown, Charcoal Grey, Silver, Bronze or White, many optional colors available, please call for details

  • Powder Coated for a maintenance-free and aesthetically-pleasing architectural accent while maintaining sustainability. A range of standard colors are available as well as custom colors for architectural effect may be specified.

  • ActiveLED - Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • CCT color temperature choice of 2700K, 3000K, 3500K, 4000K, 5000K

  • A 10-year warranty and a Lumen Lifetime of 90,000 hours at minimum 90% of its original Luminous Flux makes ActiveLED truly sustainable lighting and brings lighting into durable goods where most of its competitors are consumables.



WSF Series ActiveLED® Florida Wall Sconce Lights for Indoor and Overhang / Dry and Damp locations, illuminating Corridors, Hallways, Breezeways and Atriums - Choice of 7, 14 and 26 Watt fixtures

Visually pleasing indoor lighting combines state-of-the-art LED, electronics and mechanical design, 8 Watt fixture with 10 year no-light-loss warranty paves the way to sustainable lighting.

The ActiveLED® WSF Series Florida Wall Sconce is an energy efficient, high performance LED light for illuminating / highlighting corridors, hallways, breezeways and atriums to improve light levels and therefore safety.

Significant savings from not having to maintain and renew ballasts and fluorescent tubes in light fixtures, reduced heat generation and energy use justify the initial outlay.

The ActiveLED WSF wall sconce is designed to ensure maintenance-free operation over its lifetime by the careful managing of water and dust. The ActiveLED WSF series wall sconce has a preset 180° light pattern with no down light but a minimum amount of up-lighting for ambiance.

ActiveLED® WSF Wall Sconce Product Overview

ActiveLED provides a comprehensive range of the WSF Series Wall Sconces with a choice of CCT color temperatures (2700K, 3000K, 3500K, 4000, 5000K). For example, the CCT3000K range has a "warmer" color accent light and the CCT5000K range has brighter light and a higher color temperature that closely emulates natural daylight.

Product Code

Possible Application

Fixture Wattage

Light Output

CCT Color Temperature

WSF-2706

Corridor

7 Watt

~550 Lumen

CCT2700K

WSF-3012

Hallway

14 Watt

~1,100 Lumen

CCT3000K

WSF-3524

Breezeway

26 Watt

~2,200 Lumen

CCT3500K

WSF-5006

Corridor

7 Watt

~550 Lumen

CCT5000K

WSF-4012

Hallway

14 Watt

~1,100 Lumen

CCT4000K

WSF-5024

Atrium

26 Watt

~2,200 Lumens

CCT5000K

ActiveLED® Similar Products

ActiveLED Wall Sconce Lights are more durable and reliable compared to conventional wall sconce lighting fixtures. Our lights offer increased visibility while reducing costs.

ActiveLED® Technology

ActiveLED uses the latest in energy efficient LEDs and LED Modules producing equivalent or greater light output than fluorescent light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss in the fixture providing for maximum lighting efficiency.

ActiveLED® Architectural Features

ActiveLED wall sconces run much cooler than conventional incandescent or fluorescent light fixtures and are half the weight putting less stress on the wall structure.

A range of standard colors are available as well as custom colors for architectural effect may be specified.

ActiveLED® Warranties

We provide mechanically robust outdoor & indoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies.

ActiveLED is an ISO 9001:2006 company, registered under BSI certificate FM-1880. ActiveLED provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

All casework is coated with Epoxy-based paint to ensure that the aesthetics remain fresh and vibrant for the lifetime of the WSF wall sconce.

ActiveLED® WSF Florida Wall Sconce Sample Part Numbers:

WSF-1-B3506WH, 120 VAC 60 Hz, CCT3500K, 7 Watt Fixture, White
WSF-1-B3512BZ, 120 VAC 60 Hz, CCT3500K, 14 Watt Fixture, Bronze
WSF-1-B5006BR, 120 VAC 60 Hz, CCT5000K, 7 Watts Fixture, Brown
WSF-1-B5024CG, 120 VAC 60 Hz, CCT5000K, 26 Watt Fixture, Charcoal Grey


Technical Information

Input Voltage:• Voltage-specific, specify at time of ordering from the following options:
(1) 110/120V AC, 60Hz
(2) 277V AC, 60 Hz
(3) 100V AC, 60 Hz
(4) 208V AC, 60 Hz
(5) 240V AC, 50 Hz

• Digital Power Source, dedicated circuit breaker strongly recommended
Power Statistics:• 7, 14 or 26 Watt Fixtures
• 6, 12 or 24 Watt LEDs
Power Factor:> 0.95 (at 208 Volts)
Dimensions:13.50"(H) x 8.00"(W) x 3.75"(D)(34.3 x 20.3 x 9.5cm)
Weight:4.5 lb (2.0 Kg)
Operating Temperature:-58° F to +149° F (-50° F to +65° C)
Lumen Lifetime:

Listings & Tests:
90,000 hours (90% Luminous Flux)

cUL Listed Driver, suitable for damp locations.
TM21 based on CALIPER ISTM Test to UL1598
CALIPER LM-79 Report, LM-80 info available
CE File, RoHS compliant, IP66 Rated.
Conforms to FCC Part 15.19 Subpart B Class A
CCT Color Temperatures:Choice of 2700K, 3000K, 3500K, 4000K and 5000K, in accordance with ANSI C78.377A

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale.com for Terms and Condtions of Sale and Service.
