LightSpace® Manager 2 - Intelligent Digital Dimmer and IR Receiver for ActiveLED® Lighting Systems

  • LightSpace® Manager 2, Low DC Voltage and very low power consumption intelligent appliance that combines:
    • light switch (on / off / auto)
    • digital dimmer
    • motion / occupancy sensor
    • IR (InfraRed) Receiver

  • Controls one or many ActiveLED® lighting fixtures with precise digital dimming of the perceived light level from 0 to 100% in 2% increments

    A 104 Watt ActiveLED fixture that is dimmed down to light level 40 when there is no motion sensed consumes just 9.36 Watt (9% of 104 Watt), saving 94.64 Watt, 91%

  • Implement a digitally manageable ActiveLED occupancy zone / lighting network (up to 10 sensors per Manager) to save even more energy - remotely operate the LSM-IR using the optional hand-held remote IR controller

  • The number of LED lights that can be controlled from one LightSpace Manager-IR is virtually limitless (up to 999) - each interconnected ActiveLED fixture /power supply relays the Manager signals to the next fixture in the chain

  • Each LightSpace Manager 2 is powered by the single ActiveLED lighting fixture to which it is directly connected

  • Standard 6-wire "flat ribbon" cable connection to an ActiveLED power supply using RJ-12 male connectors

  • Standard RJ-11 / RJ12 (4-wire) "flat ribbon" cable to interconnect each ActiveLED lighting fixture providing a lighting network / occupancy zone of controllable lights

  • Satisfies the occupancy zone requirements of 2006 IECC

LightSpace® Manager 2 - Intelligent Digital Dimmer for ActiveLED® Lighting Systems

Combines the capabilities of a light switch, dimmer, occupancy sensor and remote IR receiver into a single appliance - applicable on a fixture-by-fixture basis or across an ActiveLED® occupancy zone / lighting "network"

LightSpace® Manager 2 is designed to be connected to an ActiveLED® Series EDSaP manageable power supply / driver. One LSM2-MI can digitally control one or many (up to 999) ActiveLED lighting fixtures, allowing the adjustment of light levels and occupancy sensing to suit occupancy needs while saving significant amounts of energy. The built-in IR receiver provides the ability to remotely operate the LSM up to 50 feet away using a hand-held IR remote controller.

A group of controlled ActiveLED light fixtures can be interconnected to form an occupancy zone / lighting "network".

ActiveLED® Occupancy Zone / Lighting Network

Up to 999 ActiveLED lighting fixtures in a zone can be controlled from a single LightSpace Manager.
LSM2-MI is connected to the digital input of one ActiveLED lighting fixture using an inexpensive 6-wire cable terminated with 6-pin RJ-12 connectors.
Each interconnected LED fixture / power supply relays the LSM2-MI settings to the next connected fixture via a 4-wire RJ11 / RJ12 communications cable, giving unlimited flexibility in managing a defined ActiveLED lighting occupancy zone or lighting network.

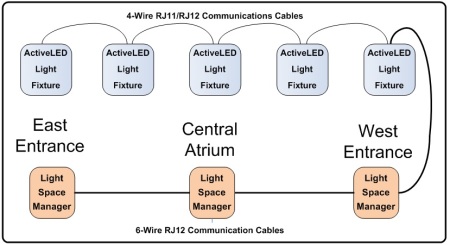

The following diagram is one example of a building or room with three entrances and three LightSpace Manager-IR appliances controlling a lighting network or occupancy zone.

00-27-0616-0000 Drawing

Depending upon the size and shape of the defined space and the number of entry and exit points, one LSM2-MI can be combined with up to 10 (ten) separate motion / occupancy sensors in designing the occupancy zone to provide maximum energy savings. The perceived light level can be precisely adjusted from 0 (off) to 100% in 2% increments to suit the particular requirements of the occupancy zone.

LightSpace® Manager 2 Programmability

The LSM2-MI is programmable to meet most lighting requirements via its easy-to-use user interface.
Light levels (dimming) can be programmed to suit local preferences in 2% increments, from 0 (off) to 100% (fully on).
The triggering of the occupancy sensor can be programmed in one minute increments from 1 to 540 minutes (9 hours), after which time it will dim the lights down to 50%.
The sensor can then be programmed in one minute increments to further reduce the lighting to zero, or a pre-defined low lighting level, after an additional 1 to 540 minutes. The Motion Sensor built into each ActiveLED LSM2-MI has a range of 35 feet in a cone that is 50° from the perpendicular (100° total cone).

LightSpace® Manager 2 - IR Operating Modes

The LSM2-MI has three selectable modes of operation:

Auto Enables both the Dimmer and Motion Sensor “automatic” functionality and the attached ActiveLED light fixtures will be managed by the LSM.
On Puts the LSM2-MI into "On" or "Manual" mode and enables the Dimming up and down feature but disables the Motion Sensor.
Off Turns the attached Ringdale ActiveLED lights off (or down to the configured light level) and disables the Motion Sensor, while the background of the LSM-IR is lit to facilitate locating it in low ambient light levels.

In applications where the LSM2-MI needs to be operated remotely - for example from a podium across the room from the LSM2-MI, or where the LSM2-MI is installed out of reach of unauthorized users - all of the above described operations can be remotely managed via the built-in IR Receiver from a hand-held remote control, in much the same way as a home theater is operated from a remote IR control (remote IR controller sold separately).

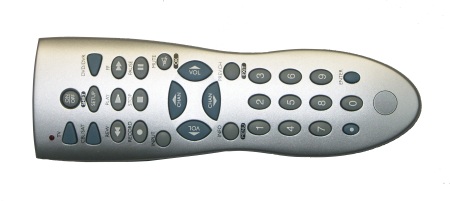

Remote Hand-Held IR Controller Part Number:- 00-27-0100-0000, for details CLICK HERE.


ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux). ActiveLED fixtures use the patented EDSaP protocol and signalling for its dimming of light fixtures. A DMX dimming option is available for this product.

ActiveLED® Warranties

We provide mechanically robust LED lighting systems; our warranties are 10 years on LED elements, fixtures, drivers / power supplies and the LightSpace Manager-IR.

Ringdale is an ISO 9001:2015 company. Ringdale provides products of the highest quality designed and manufactured in Texas and in the United Kingdom.

ActiveLED® Communication Cables for the LightSpace Manager 2 - MI

The LSM2-MI connects to an ActiveLED power supply as per the EDSaP wiring specification, using standard RJ12 6-wire "flat ribbon" cable using RJ-12 male connectors.

Interconnect each ActiveLED lighting fixture to provide a lighting network / occupancy zone as per the EDSaP wiring specification, using either Standard RJ-11 / RJ12 (4-wire) "flat ribbon" cabling.

NOTE: Cables, Decora Frame and Hand-Held Remote Control not included in the price of the LightSpace Manager 2 MI.

LightSpace® Manager-IR (LSM2-MI) Part Numbers:

LSM2-D-CD-MI, USA fits in Decora style Faceplate
LSM2-D-CD-MI-DMX, USA fits in Decora style Faceplate

Technical Information

Prerequisites:• ActiveLED light fixture with the Digital Management option (comms ports)
• LightSpace® Controller (LSC)

• ActiveLED Hand-Held remote IR controller
to ActiveLED Light:
6-conductor flat ribbon cable:
• 6-pin RJ-12 connectors
to optional Digital Sensors:
6-conductor flat ribbon cable:
• 6-pin RJ-12 connectors
LED to LED Fixture:
4-conductor flat ribbon cable:
• 4-pin RJ-11 connector one end
• 6-pin RJ-12 connector the other end
Motion Sensing Range:

IR Range:
Up to 35 feet, Sensing Cone = 50° from the perpendicular, 100° total cone
Line of sight, up to 50 feet
Regulatory Compliance:

CE# 1771-19B

Powered from an ActiveLED fixture or LSC

3.8" x 1.3" x 1.0" (9.7 x 3.3 x 2.5 cm).
0.1 lb (0.05 Kg)
Default Factory Settings:After 10 minutes of no motion, dim light down to warning level 70.
After 10 seconds of no motion, dim from L70 down to and hold at level 40.
When motion is sensed, go to full brightness.
